Description

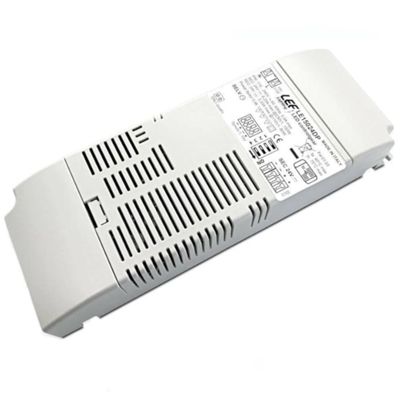

The LEF Lighting LE15024DP is a 24V DC constant voltage LED power supply with a maximum power of 150W and current of up to 6250mA.
Supports DALI dimming, PUSH button, 0-10V and 1-10V, with level memory function and synchronization between multiple units (up to 15 in slave mode).
Equipped with short circuit, overtemperature and open circuit protections, it offers class II certification and IP20 protection rating.
Its compact size and resistant plastic container make it suitable even for small indoor spaces.
Datasheet
• Model LE15024DP
• Power supply type: 24V dimmable LED
• Input voltage 110–240 V AC, 50/60 Hz
• Output voltage 24 V DC constant
• Rated power 150 W
• Maximum current 6 250 mA
• DALI, PUSH (button), 0-10 V and 1-10 V dimming
• Level memory function and synchronization up to 15 slave units
• Integrated protections: short circuit, over temperature, open circuit
• Insulation class II, protection IP20
• Dimensions 210 × 75 × 35 mm (W × D × H)
• Durable plastic container
Package Contents:
• 1 LEF LE15024DP 150 W 24 V power supply
