Description

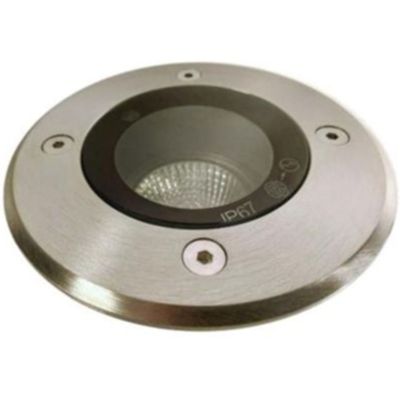

Round recessed floor spotlight Ø110mm for LED lamps for floor installation with mandatory outer casing.
The die-cast aluminium body has been subjected to a painting treatment while the AISI 304 stainless steel frame has a diameter of 110 mm and is subjected to micro-shot peening.
The spotlight being drive-over has a maximum capacity of 2000Kg at a speed of 20Km/h and the diffuser in extra-clear transparent tempered flat glass has a thickness of 8mm. It has a reinforced black outer casing,
The bulb lamp fitting is GU10 while the maximum size of the LED lamp is 50x56mm with a maximum power of 35W. The recessed spotlight has PG9 metal cable glands (input – output) supplied.
Recessed wall-mounted device for installation with supplied outer casing.
Datasheet
• Spotlight with outer casing
• Maximum load 2000kg
• Model DRACMA 110
• GU10 lamp not included
• IP67 protection rating
• Frame length 11.0 cm
• Base width 8.4 cm
• Height 14.0 cm
Properties
Bulb included: |
No
|
Lamp connection: |
GU10
|
Maximum lamp power: |
35
|
Degree of protection: |
IP67
|
Diffuser: |
Transparent
|
Warnings: |
|
