Description

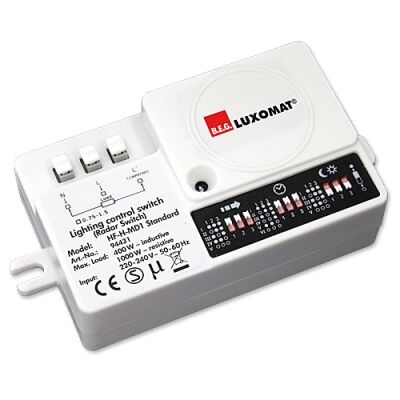

High frequency motion detector particularly suitable for flush-mounting and mounting in lighting fixtures.
Detection independent of the temperature value, also detects through materials.
The range of action, the switch-on threshold and additional operating time are adjustable via dip-switches.
Suitable for mounting in luminaires, recessed sockets or behind wall or ceiling coverings with sufficient light reception for the photosensor.
Datasheet
Technical specifications:
• Power supply 230 V AC +/- 10% 50 Hz
• Dimensions 103 x 53 x 26 mm
• Power consumption approx. 0.8W
• 360° vertical detection area
• Range of action Ø 0.2 - 16 m
• Detection area, referring to the detector mounted at the indicated height and as a tangential detection area 201 m²
• Allowed installation height 1 m / 11 m / 2.5 m
• IP20 protection degree
• Class II
• Operating temperature: -35 °C to +70
• Casing: Casing made of high-quality UV-resistant PC
• Contact load: 1000 W, cos φ = 1 Turn-on time: 0s (instantaneous)
• Dry contact type
• Switch-off delay 5 s - 25 min
• Switch-on threshold 2 - 30 Lux
• HF technique / Radar 5.8 GHz <10 mW
