Compact design and glossy white finish, ideal for residential and commercial installations
Often bought together
Description

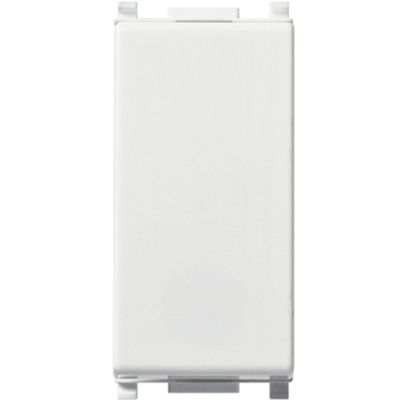

The Vimar Plana 14000 switch is a 10AX, 250V~ single-pole device designed to provide reliable lighting control in domestic and commercial environments. Its compact structure and elegant design with a glossy white finish make it suitable for any type of decor.
Equipped with a replaceable button and optional LED lighting, it allows easy identification even in low light conditions. The connection is via screw terminals, ensuring a safe and long-lasting connection.
Compliant with IEC 60669-1:2017, the switch supports loads up to 100W for lamps with integrated power supply. Its recessed installation and IP40 protection index make it ideal for protected indoor environments.
Datasheet
• Model 14000
• Plana Series
• Single pole switch type 1P 10AX
• Rated voltage 250 V~
• Rated current 10 A
• Optional lighting with replaceable LED
• Control type rocker/button
• Number of modules 1
• Mounting type Recessed
• Fixing type lock in position
• Halogen-free thermoplastic plastic material
• Glossy surface finish
• White colour (RAL 9003)
• Degree of protection IP40
• Connection type screw terminal
• Dimensions width 22.3 mm, height 49.0 mm, depth 38.4 mm
• Installation depth 24.0 mm
• IEC 60669-1:2017 regulatory compliance
Package Contents:
• 1 Vimar Plana 14000 switch
• Installation instructions on the package
