Description

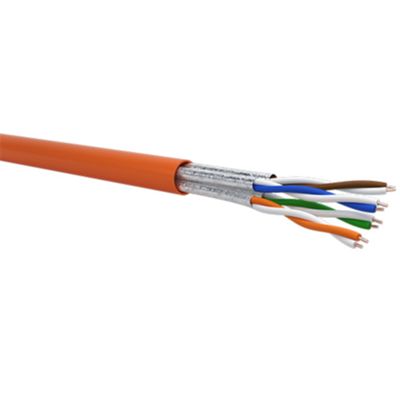

Category 6A U/FTP network cable, designed to ensure high performance in cabling applications, consisting of 4 pairs of AWG 23/1 (0.55 mm) red copper conductors with expanded polyethylene insulation, offers a solid foundation for efficient data transmissions.
The aluminium tape shielding (Al/PET) on each pair reduces electromagnetic interference, while the LSZH (Low Smoke Zero Halogen) outer sheath in orange RAL 2003 is flame retardant, making the cable suitable for internal installations where low emission of toxic fumes in case of fire is required.
Tested up to 500 MHz, the cable is suitable for the creation of Class EA transmission channels, supporting applications such as 10 Gbps Ethernet according to the IEEE 802.3an protocol and PoE/PoE+/PoE++.
Datasheet
• Conductor material/diameter red copper/AWG 23/1 (0.55 mm)
• Insulation material/diameter expanded polyethylene, maximum diameter 1.34 mm
• External cable diameter 7.3 mm
• Material/color of external sheath LSZH/Orange RAL 2003
• Cable weight 57 kg/Kg
• Intended use for internal installations
• Operating temperature from -10°C to +60°C
Properties
