Description

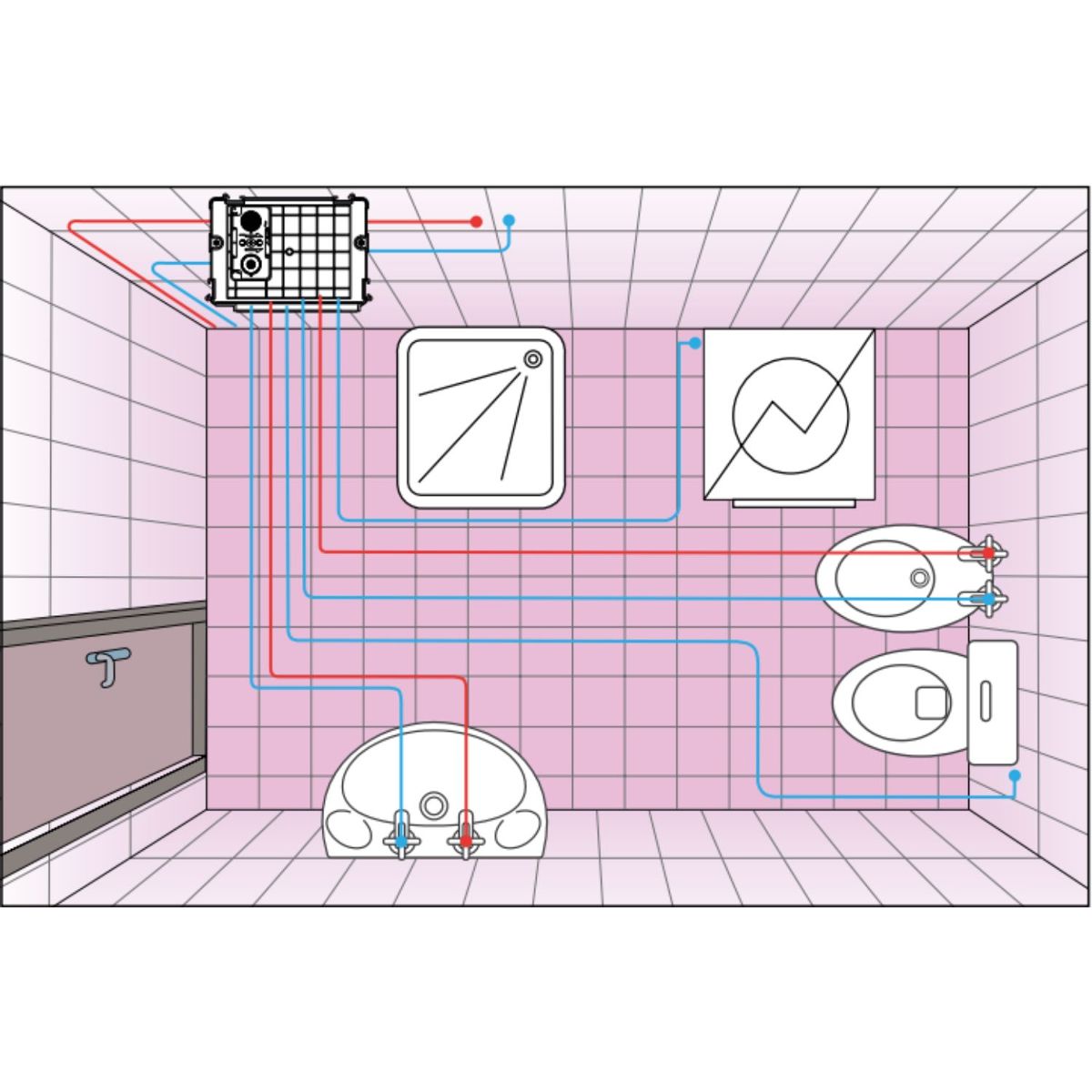

A collector for drinking water in sanitary systems, equipped with two integrated shut-off taps with blue/red lever (which identify hot water and cold water) and 7 outlets for the pipes (3 outlets for DHW and 4 for AFS)
The compact manifold can be used for drinking water systems with RAUTITAN stabil and RAUTITAN flex universal pipes. To connect the pipes to the manifold outlets, RAUTITAN self-locking sleeves with diameters of 16 and 20 must be used.
Datasheet
• Main connections Ø20
• 5 outlets for cold water (4 Ø16 + 1 Ø20)
• 4 outlets for hot water (3 Ø16 + 1 Ø20)
• Branches from the manifold with RAUTITAN self-locking sleeve connection diameter 16 and 20
• Box with grille for recessed installation (length x width x depth) 26x18x75 cm
• Brass manifold standard EN 12164, EN 12165, EN 12168
• Supplied with box adjustment bracket, installation instructions and protective caps for taps during construction phase
• Can be used with the same plate for the TWIN tap
