Rehau 13208931001 - RAUTHERM SPEED plus 2.0 panel roll

SKU: REH13208931001

Barcode: 4064299314381

Brand: Rehau

Self-adhesive system for quick and safe installation

Recommended for renovations

Compatible with RAUTHERM SPEED K and RAUTHERM NEO-X5 pipes

€13.17m²

Also available on quote (if you request at least 20.00). Please add the desired quantity to your cart.

Other supplier availability Other supplier availability Other supplier availability Other supplier availability

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

verified 2 years warranty sync Easy return within 14 days shopping_cart Buy with tax benefits

Description

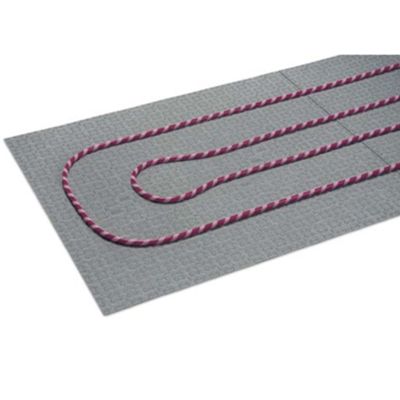

RAUTHERM SPEED Plus 2.0 is the innovative roll system designed for the simple, fast and safe installation of pipes in radiant floor systems.

Thanks to its 1.5 mm thick self-adhesive PE/PP surface and its new, optimized coating, it ensures quick installation on various types of insulation materials and surfaces (including existing flooring), significantly reducing installation times compared to traditional systems. The mat's unique structure ensures stable attachment of RAUTHERM SPEED K and RAUTHERM NEO-X5 pipes, allowing for precise and reliable installation even on large surfaces.

The lightweight, durable material makes it easy to handle on site, while the flexibility of the roll format allows for optimal adaptation to different system configurations.

The system is ideal for renovations, offering high performance in terms of living comfort, energy efficiency and durability.

Datasheet

• PE/PP coating sheet material

• Roll dimensions: 0.93 x 21.5 m / Surface area 20 m2

• Roll installation surface: 0.88 x 21.4 m (according to the minimum overlaps described in the Technical Information)

• Pipe lift 1 mm

• Installation centre distance 5 cm and multiples

• Surface area 18.83 m2 per roll

• Use pipes with quick-connect strips for underfloor systems

• Store the product in a dry place

• Do not expose to direct sunlight

• Temperature of the laying phases ± 0 and +35 ° C

• Surfaces suitable for installation, screeds, anhydrite screeds, ceramic floors, plasterboard, wood fibre and mineral chipboard

• Minimum overlap of 5 cm on the longitudinal edge and 10 cm on the transverse edge (the overlaps between panels must be pressed firmly with the foot)

• During installation, the fixing joints between the panels must not form a cross, depending on the installation conditions, the overlaps must be staggered with respect to each other

• Insulating materials suitable for coupling: expanded polystyrene EPS according to DIN EN 13163, polyurethane insulation panels according to DIN EN 13165, wood fibre insulation panels according to DIN EN 13171

• Fire resistance according to UNI EN 13501-1 E
