Description

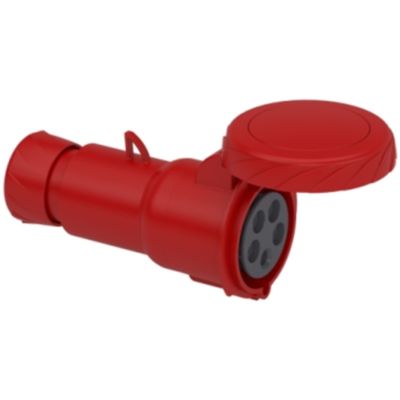

The Schneider PKY32M735 industrial socket is part of the PratiKa series and is designed to ensure maximum reliability in harsh environments. It is ideal for industrial applications, construction sites and outdoor installations, thanks to its IP67 protection rating that ensures resistance to dust and temporary immersion in water.
Compatible with three-phase systems, it supports an operating voltage of 380–415 V and a nominal current of 32 A. The 6-hour grounding position complies with IEC 60309-2 standards. The self-extinguishing thermoplastic body ensures safety and durability, while the fast connection system allows for quick wiring without screws, simplifying installation.
Thanks to its mechanical robustness (IK08), heat resistance up to 850 °C and compatibility with cables from 2.5 to 6 mm², this socket is the perfect solution for the most demanding needs in the professional field.
Datasheet
• Model PKX16M423
• Type: Industrial mobile plug
• Poles 2P+T
• Rated current 16A
• Nominal voltage 230V
• Frequency 50/60 Hz
• 6 o'clock position
• Degree of protection IP44
• IEC 60309 standard
• High resistance thermoplastic material
• Color Blue
• Applications in industrial and professional environments
Package Contents:
• Schneider PKX16M423 industrial plug
