Description

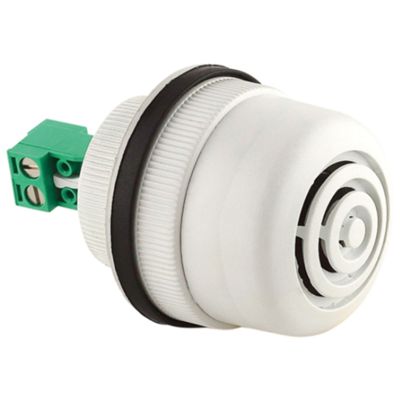

The BEBIP flush-mounted buzzer is designed for industrial applications on electrical panels and cabinets.
Equipped with a piezoelectric acoustic capsule, it emits an intermittent sound with a frequency of 4000±300 Hz and a maximum sound level of 82 dB at 1 meter away.
The device operates at a voltage of 24V AC/DC ±10% and has a maximum current consumption of 7 mA.
The structure is made of self-extinguishing ABS, with an IP55 protection rating , making it suitable for indoor and outdoor environments.
Installation is via a locking ring on round holes with a diameter of 16, 22 or 30 mm.
The buzzer is designed for continuous operation in a temperature range of -30°C to +50°C.
Datasheet
• IP55 protection rating
• Operating temperature from -30°C to +50°C
• Voltage 24V
• AC/DC current
• Maximum current consumption 7.0 mA
• 82 dB maximum
• 1 tone
• Body and ring in self-extinguishing ABS
• Rear panel installation for round hole (Ø 16 – 22 – 30 mm) via ring nut
