Description

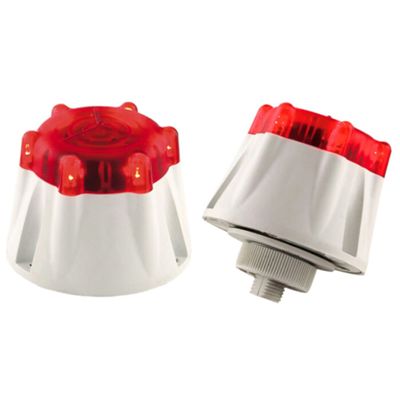

The multifunctional acoustic-luminous buzzer Sirena BIMF LED is designed for installation on electrical panels and cabinets.
Developed with a piezoelectric acoustic capsule, it generates a characteristic sound that can be continuous or intermittent, in slow or fast mode.
The light signal, produced by an integrated LED with a red dome, offers fixed or flashing light effects, synchronized respectively with the continuous or intermittent sound.
The device supports a wide range of voltages, from 12 to 240V AC/DC , with a maximum consumption of 25 mA .
Rated IP55 , it is suitable for indoor and outdoor use. Installation is via locking ring fixing on 12mm holes, and an adapter for 22mm holes is supplied.
This buzzer is ideal for applications requiring reliable audible and visual signaling in industrial settings.
Datasheet
• IP55 protection rating
• Operating temperature from -30°C to +50°C
• Voltage 12-240V
• AC/DC current
• Red dome color
• 85 dB maximum
• 3 tones
