Description

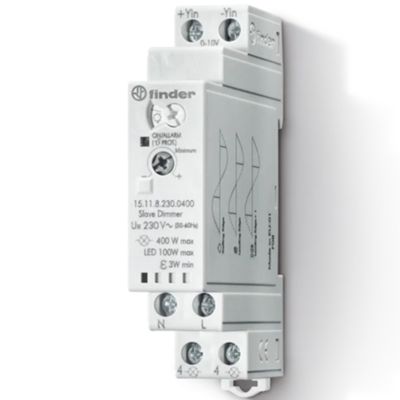

Slave type modular dimmer with 1-10V input driven by the 15.10, or by other devices with 0-10V/1-10V interface.
It is suitable for controlling lamp loads and is compatible with incandescent and halogen lamps, both directly and through transformers or electronic ballasts.
It is also compatible with energy saving lamps, dimmable compact fluorescent lamps (CFL) or dimmable LEDs and with all types of electromechanical transformers and LEDs.
It has thermal protection against overloads and short circuit protection.
Nominal flow rate:
400 W halogen lamps
Toroidal transformers for 400 W low voltage halogen lamps
Dimmable compact fluorescent lamps (CFL) 100 W
Dimmable LEDs 230V 100W
400 W electronic transformers
It has a minimum light intensity regulator and occupies 1 module.
