Description

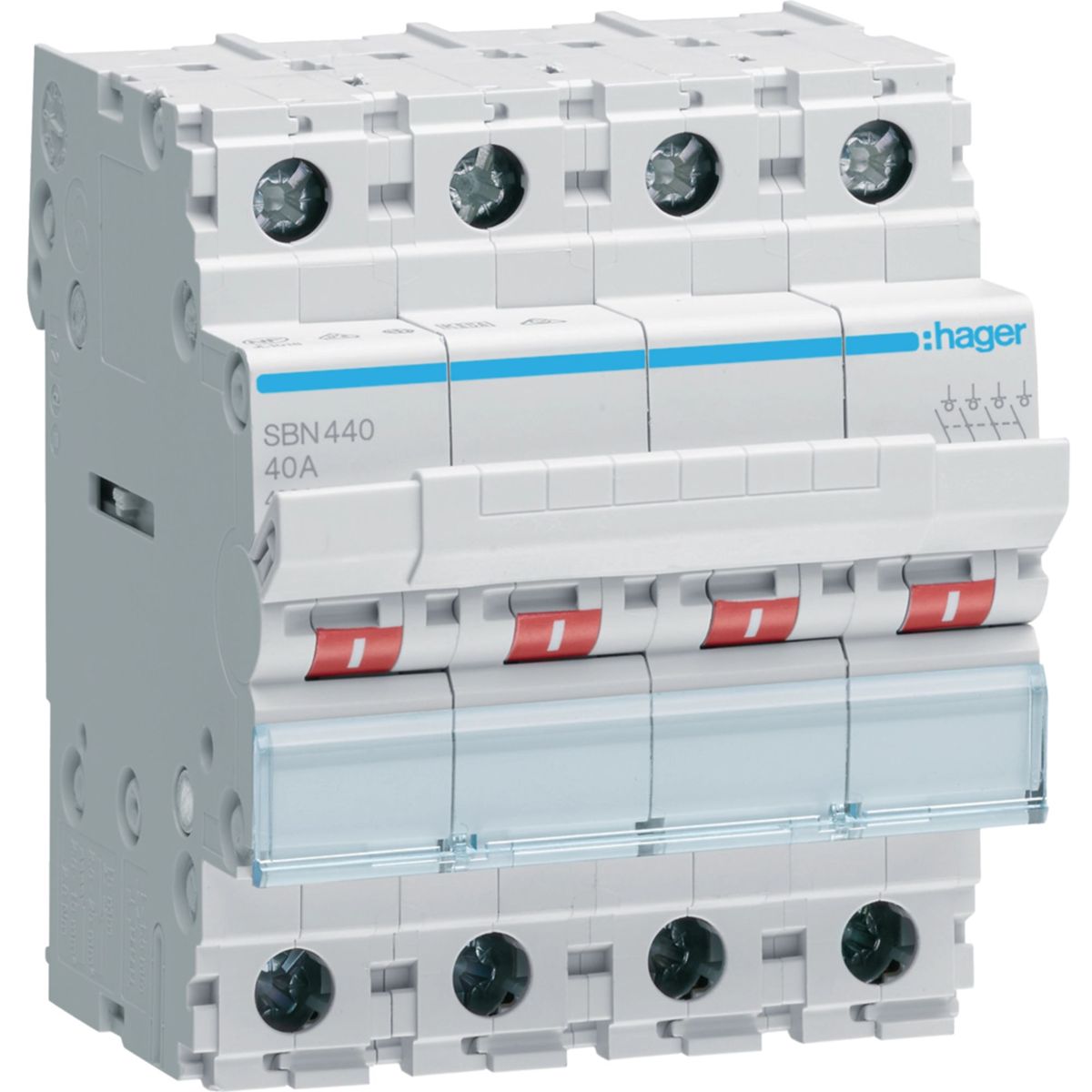

The Hager SBN440 is a 4-pole non-automatic switch, designed for compact disconnection in modular switchboards.
With a rated current of 40 A and an operating voltage of 400 V AC, it complies with IEC 60947-3.
Equipped with a robust breaking capacity (Icm 0.84 kA and Icw 0.60 kA) and built to last up to 60,000 operations, it is practical, reliable and takes up only 4 DIN modules.
Datasheet
• Number of poles 4
• Rated current 40 A
• Rated operating voltage 400 V AC
• Short-circuit making capacity (Icm) 0.84 kA
• Short-time withstand current (Icw) 0.60 kA
• Number of DIN modules 4
• Degree of protection IP20
• Mechanical life 60,000 operations
• Screw terminal connectivity, top and bottom wiring aligned
