Description

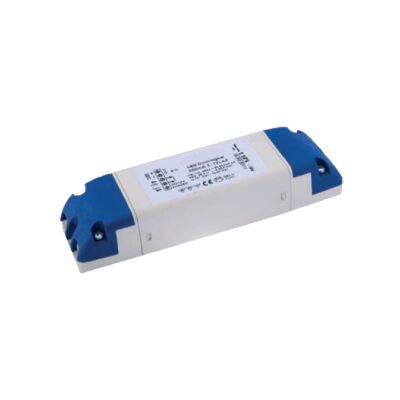

PWM signal amplifier that allows you to amplify the input PWM signal and bring it back to the output with a maximum power of 288W in 12Vdc and 576W in 24Vdc for synchronized control on multiple lines.
With single color LED strip 1CH x 8A + 1CH x 8A + 1CH x 8A = 24A 12Vcc - 24Vcc (total Max. 96W + 96W + 96W 12Vcc - 192W + 192W + 192W 24Vcc) or RGB LED strip 3CH x 8A = 24A 12Vcc - 24Vcc (Max. 288W - 576W).
To be used in MASTER SLAVE control systems where the main single-color or RGB control dimmer is connected in the MASTER function (synchronizer) and the PWMREP code amplifiers up to a max. of 10 units in the SLAVE (actuator) function.
Datasheet
• Voltage 12/24Vdc
• Power Monocolour/RGB 288W/12Vcc - 576W/24Vcc4A (8Ax3 Ch.)
• Dimensions 38 x 40 x 28.5
