Fitting with female connection, compatible with the FastPipe 5/8" system
Description
Fitting compatible with the FastPipe system, this fitting ensures an efficient connection between the system components, easy and quick to install.
How to use?

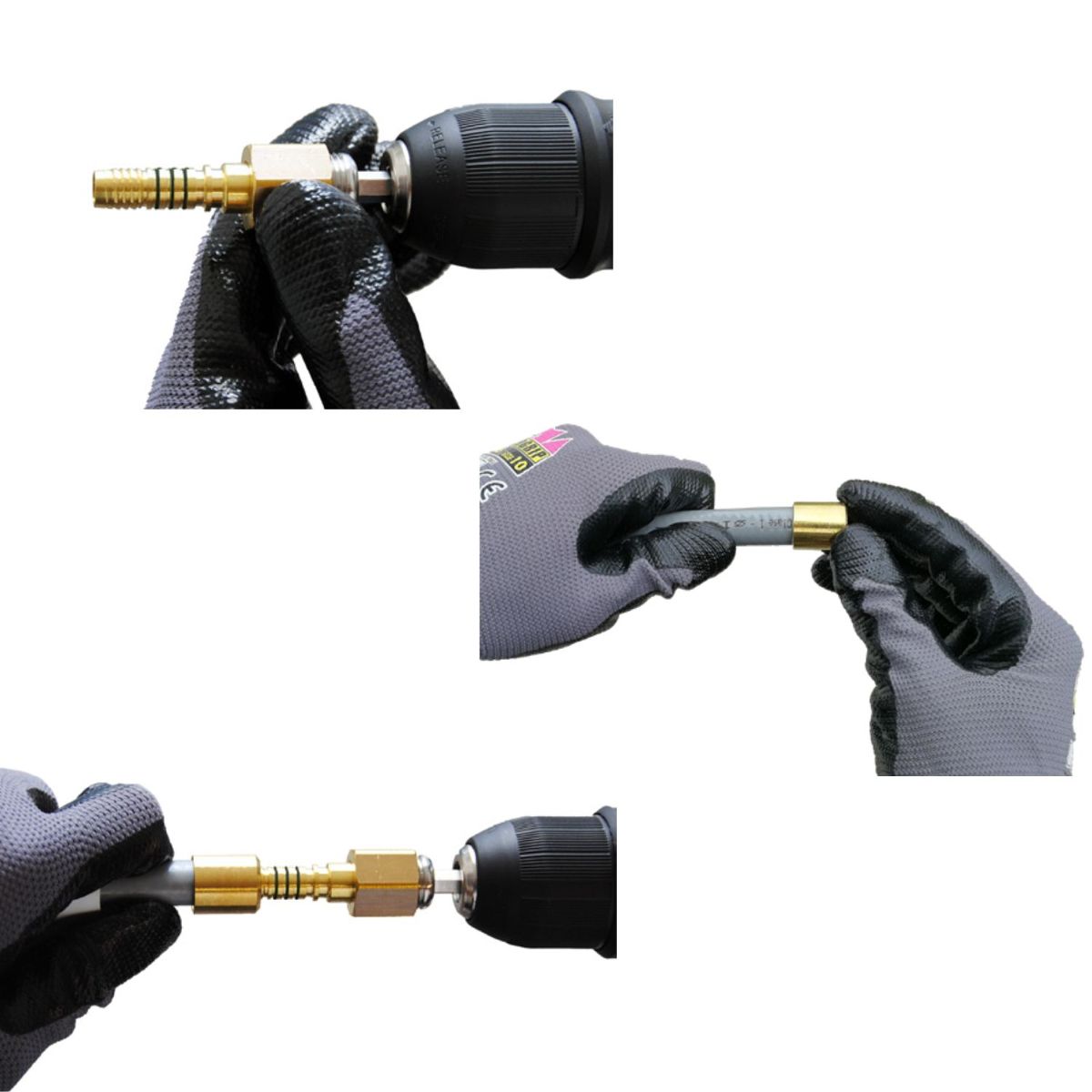

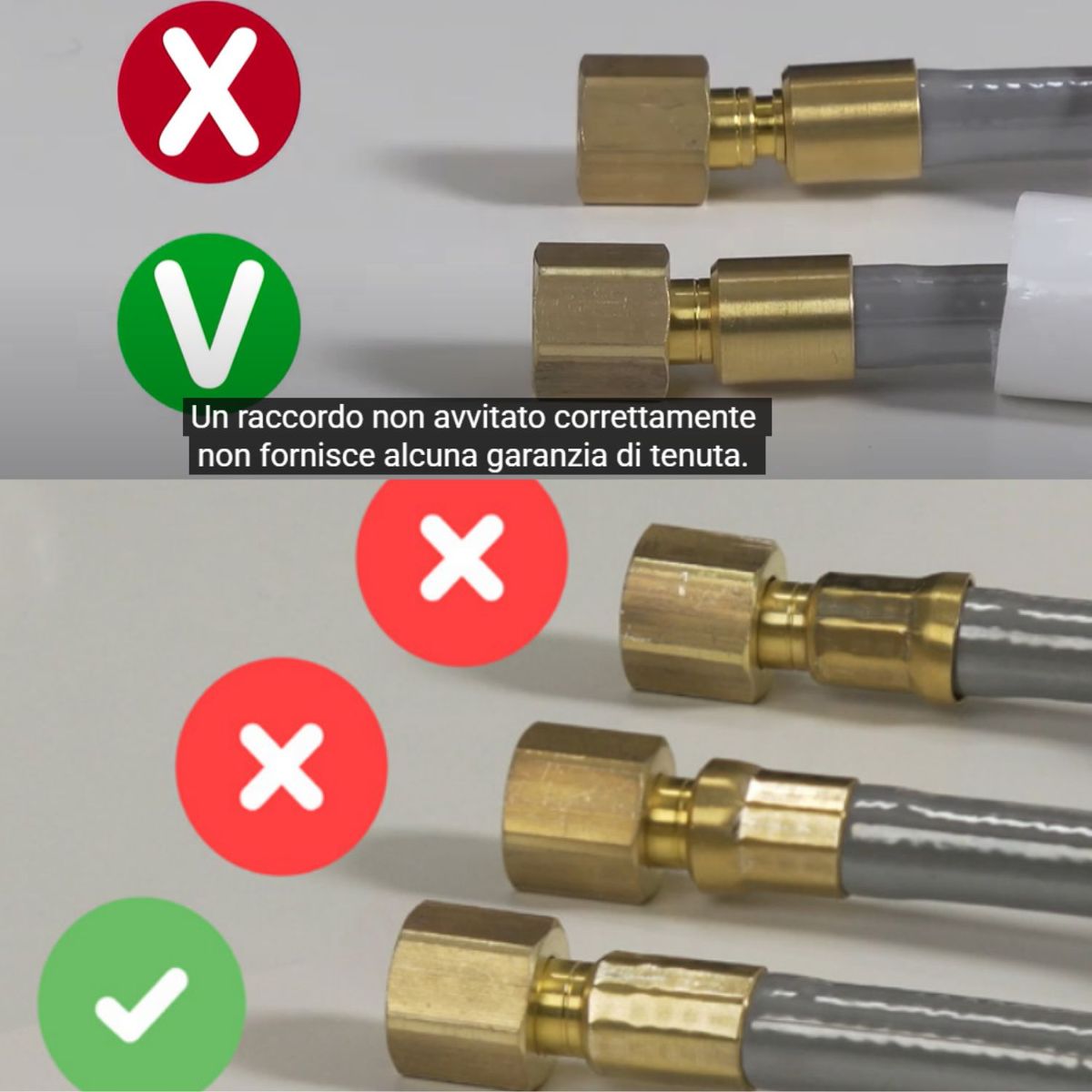

Simply retract 10 cm of the FastPipe pipe insulation, insert the supplied ferrule, connect the fitting and nut to the FastPipe fitting insert (previously inserted into your screwdriver) and, with some pressure, screw the fitting onto the pipe until it stops. Check that the fitting has been screwed on correctly, then crimp, oil and connect to the indoor or outdoor unit.
Datasheet
• Patented design and installation method
• Metal components: brass (various alloys)
• O-rings: rubber (custom compounds)
• Pro-Memory Card: paper
Properties
Cerifications:
C E
Downloads
attachment
attachment
attachment
attachment
attachment
FastPipe installation manual
(3,935 KB)
Spécifications techniques du raccord FastPipe (FR)
(224 KB)
Specifiche tecniche raccordo FastPipe (IT)
(223 KB)
Especificaciones técnicas de los accesorios FastPipe (ES)
(226 KB)
FastPipe Technical Specifications (EN)
(223 KB)
