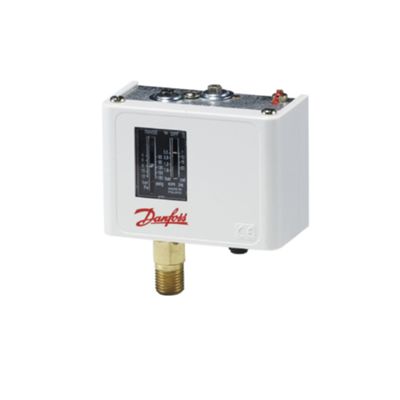

Pressure switch for liquid and gaseous products - 4.0 ÷ 12.0 bar
Description
Pressure switch used for control, monitoring and alarm systems in a wide range of industrial applications. The main features that make this product the best choice are the wide range of settings, its small footprint and therefore easy panel installation.
Datasheet
• Ambient temperature - 40°C ÷ 65°C
• Compatible gaseous and liquid fluids
• Bellows materials: phosphor bronze, pressure connector: brass and electrical contact: silver
• Single-pole, double-position contact system
• Degree of protection IP30 (not protected against the ingress of liquids, protected against the ingress of solid objects larger than 2.5 mm)
• 1/4" M ISO 228-1 connection
• Pressure range 4.0 ÷ 12.0 bar
• Factory calibration 0.5 ÷ 1.6 bar bar
• Max operating pressure 18 bar
Properties
Cerifications:
