Tecnosystemi 11110108 - copper tube 3/8+1/2 thickness 10 mm - 20 m Top Line
Description

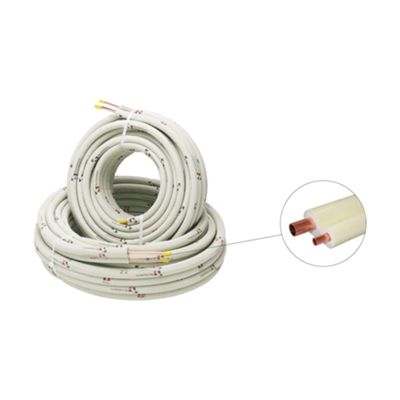

Copper tube Cu-DHP copper tube according to EN 12735-1 insulated coupled made of high quality copper with a wall thickness of 1.0 mm, offers durability and time saving in installation.
The 6 mm thick closed-cell expanded polyethylene insulating sheath guarantees excellent thermal insulation, reducing energy loss and preventing the formation of condensation.
The sturdy, ivory-colored, pyramid-shaped, tear-proof outer film adds mechanical protection and weather resistance.
DOES NOT CONTAIN FREON (HCFC, CFC or HFC) in compliance with law no. 549 of 28/12/1993
ON REQUEST INSULATED PIPE 10 mm INSULATED WITH COPPER PIPE THICKNESS 0.8 mm
Datasheet
• Copper ends plugged
• Cardboard packaging
• Copper tube thickness 1.0 mm
• Coupled tube measures Ø CU 3/8" - 1/2" (9.52 - 12.7 mm)
• Coupled tube size 34 x 40 mm
• Max. Operating pressure 84.8 - 63.5 bar
• Burst pressure 405.4 - 303.9 bar
• Operating temperature -80° C +120°C
• Density 30 kg / m³
• Technical conductivity coefficient (EN 12667) 0.038 W/mk @ 10° - 0.042 W/mk @ 40° C
• Vapour permeability (UNI EN 13469) µ = 15000
• Fire reaction class (EN 13501) BL - s2, d0
