Description

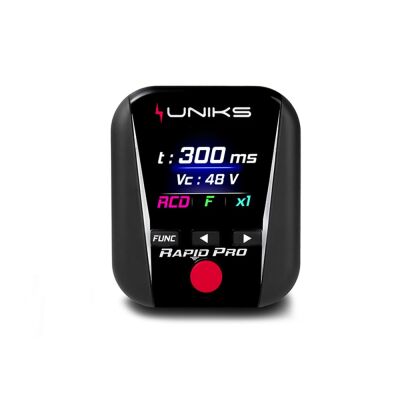

RAPIDPRO is pocket-sized and allows you to carry out electrical safety tests and RCD type A, AC and F tests with 30mA test current, AUTO RCD, VC contact voltage, global earth resistance, ZLoop, voltage harmonics and THD.
It also performs tests on type A, AC and F RCDs with a 30mA test current and allows you to test the wiring of a socket and, at the same time, measure the mains voltage and frequency. Finally, it allows you to carry out tests on electric vehicle charging stations.
Datasheet
Technical specifications:
• Power supply directly from the mains up to 265V
• Internal battery life approximately 1 minute with 100% charge
• Color TFT display
• Memory 64 results
• Safety IEC/EN 61010-1, double insulation
• Operating temperature 0 ÷ 30°C
• Measurement category CAT III 300V
• Pollution degree 2
• Reference standard IEC/EN 61557-3-6
