Description

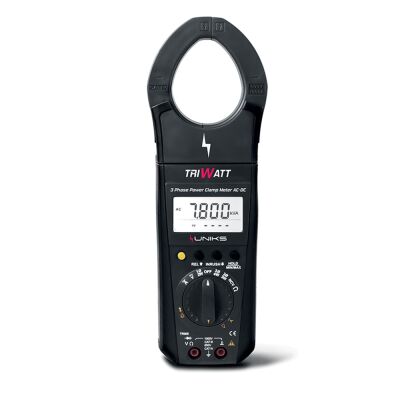

The UNS TRIWATT current clamp allows you to carry out three-phase network analyzes both in the case of balanced and unbalanced systems.
Equipped with rotating jaws that simplify measurement in difficult to access points or vertical bars. The trigger located on the lower side allows you to open and close the jaws in order to position your hand in a safer place with respect to a live conductor.
The device detects voltage, current, frequency, power, energy as well as the values of voltage and current harmonics up to the 50th. It also allows you to calculate the total power in three-phase systems even in the case of unbalanced loads.
Thanks to the Hold-Advanced function it is possible to freeze the measured value and subsequently analyze all the parameters.
Datasheet
Technical specifications:
• Voltage DC 999.9V
• AC voltage 999.9V
• Voltage AC+DC 999.9V
• LPF V~ 999.9V
• AC and DC current 999.9A
• Current AC+DC 999.9A
