Description

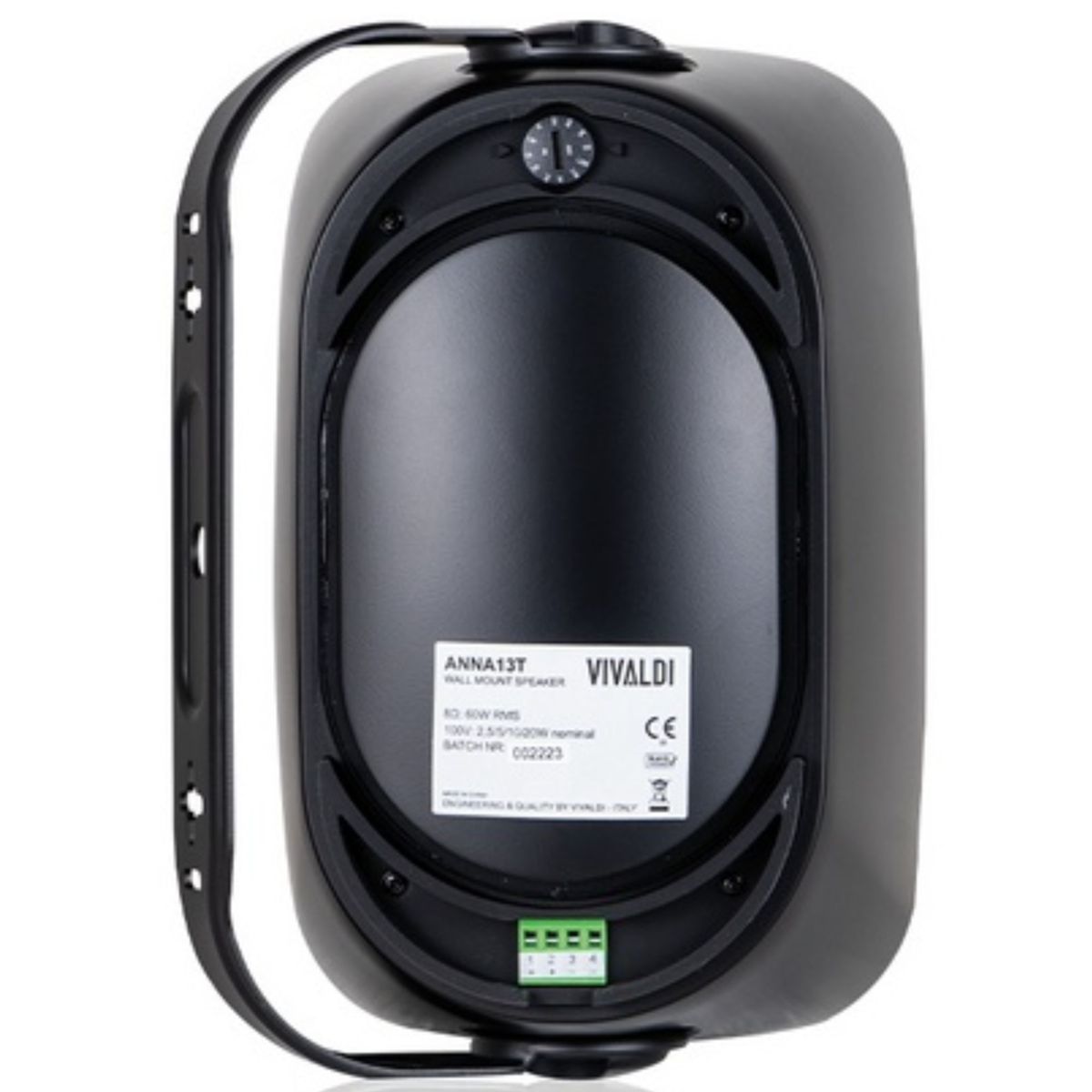

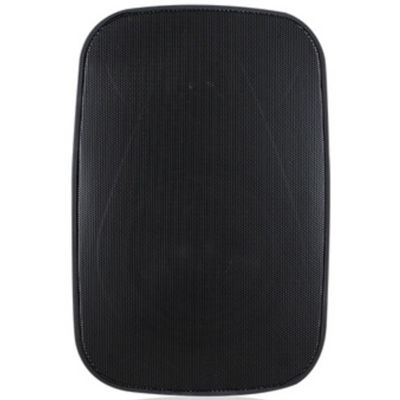

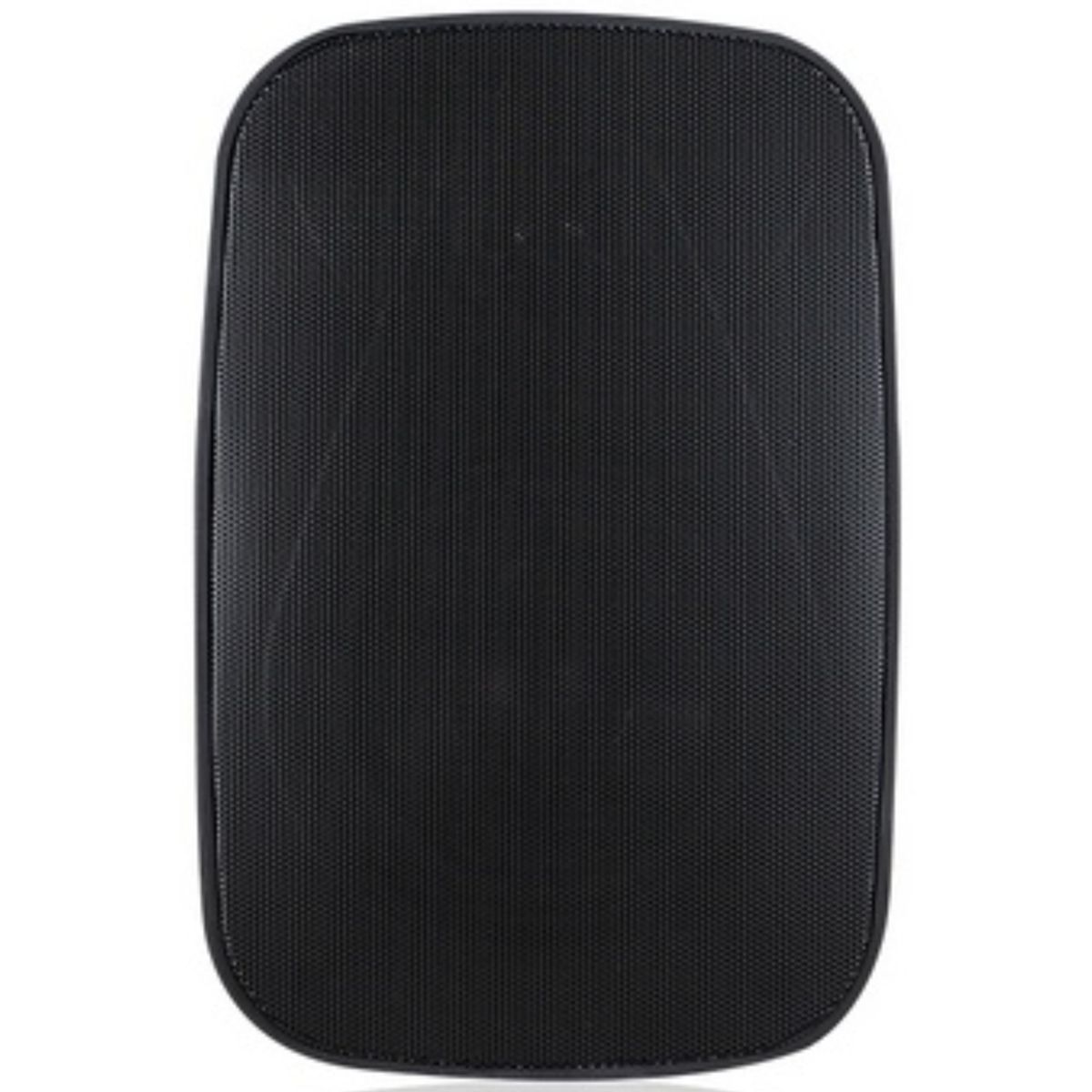

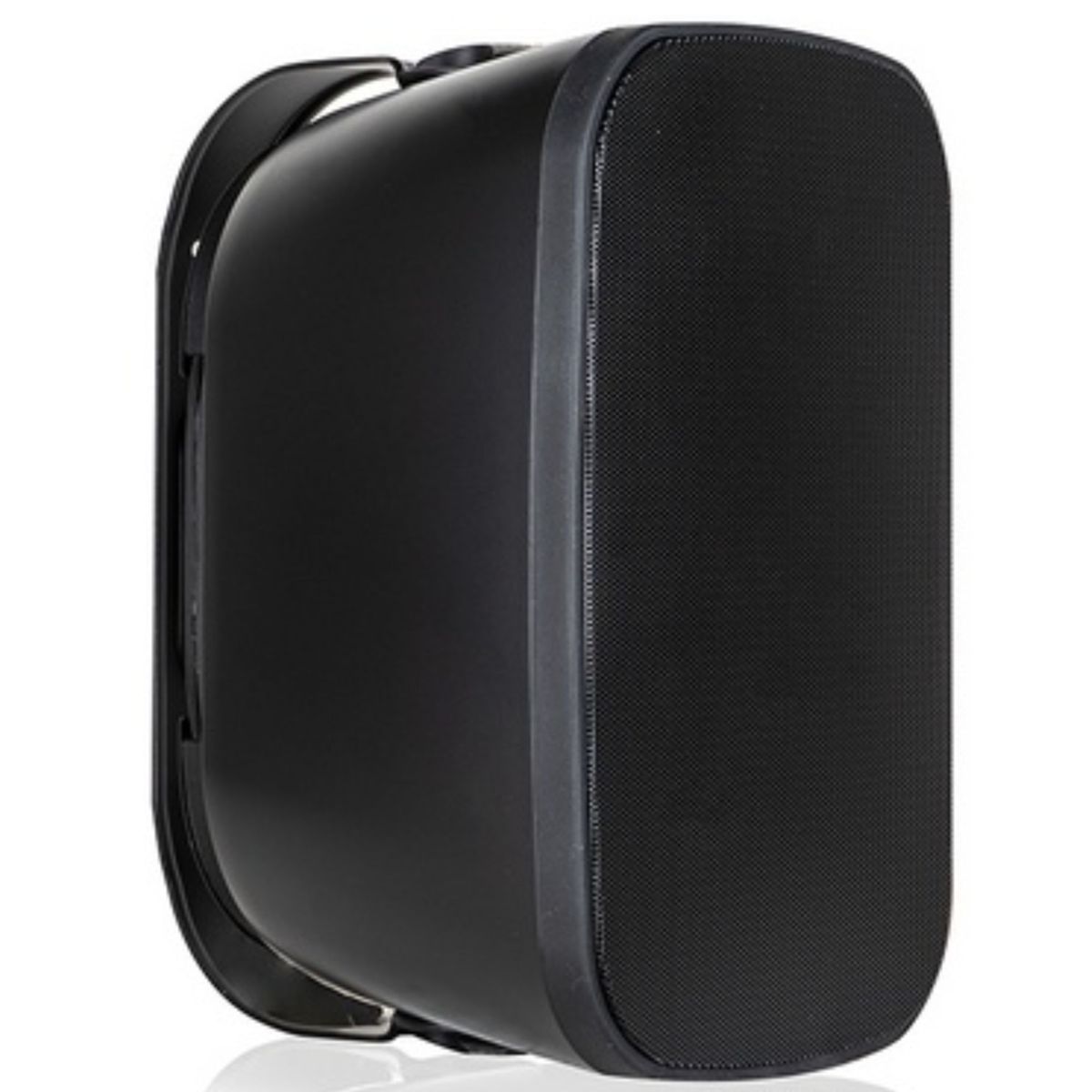

The Vivaldi Ulisse ANNA13TB is a professional 3-way sound projector with a 13 cm woofer, a 2.5 cm neodymium tweeter and an integrated elliptical passive subwoofer.
Designed for outdoor environments, including marine environments (IP66), it is made of ABS with a painted aluminum bracket and grille that offers selectable power options from 2.5 to 20 W on 100 V line (40 W peak), or 60 W RMS/120 W musical on 8 Ω.
Frequency range 55 Hz–20 kHz, sensitivity 85 dB and dispersion of 105°×90° (up to 120° below 3 kHz), ensuring wide coverage and reliable audio quality in outdoor and professional areas.
Datasheet

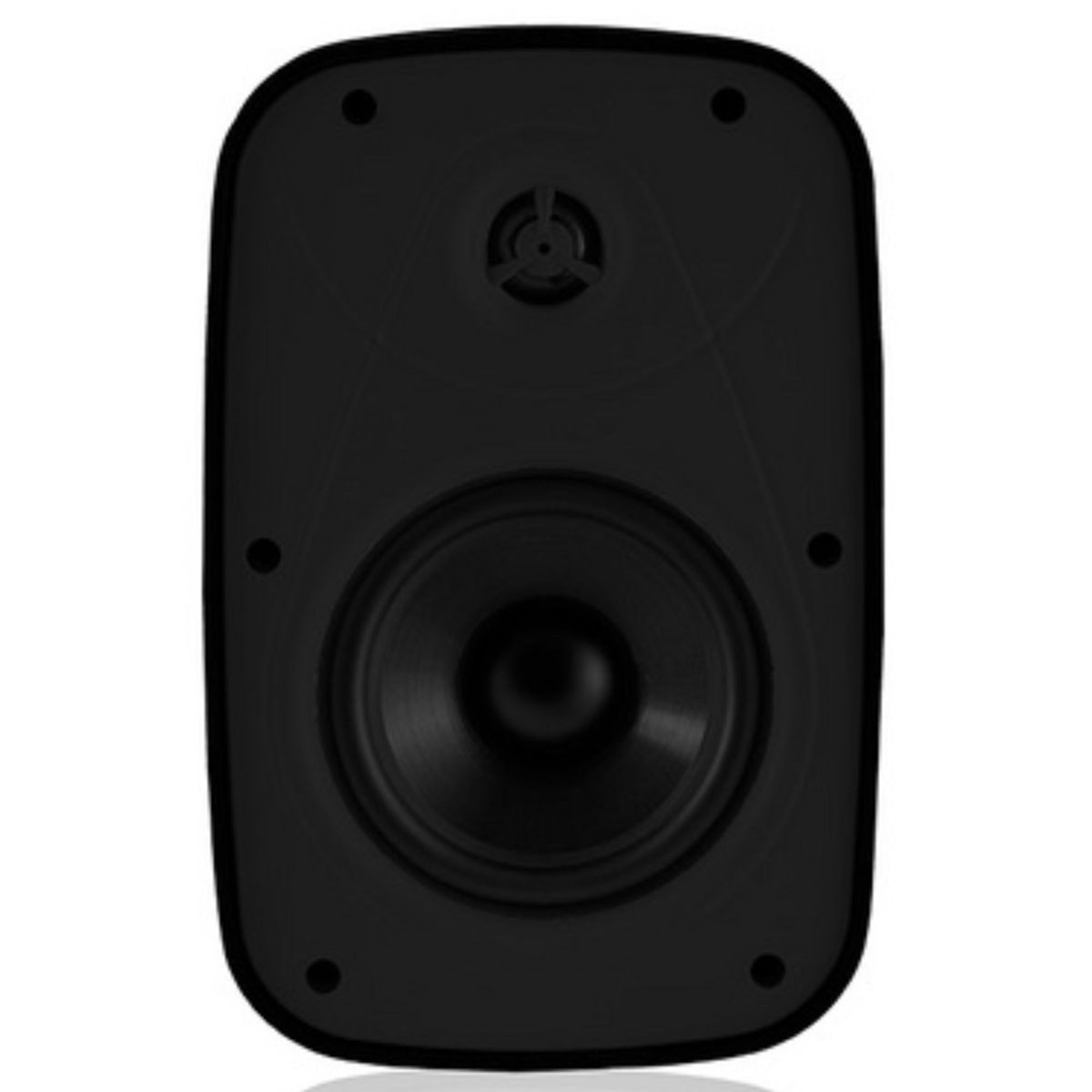

• 13 cm polypropylene woofer, graphite finish
• 2.5 cm neodymium tweeter, silk dome
• Passive subwoofer 10.5 × 15 cm
• IP66 protection (resistant to corrosion, chlorine, salt)
• Selectable impedance 8 Ω or 100 V line
• Power 100 V 2.5/5/10/20 W (peak 40 W)
• Power 8 Ω 60 W RMS / 120 W musical
• Frequency range 55–20 000 Hz
• Sensitivity 85 dB
• Max sound pressure 105 dB
• Dispersion 105° vertical × 90° horizontal (120° up to 3 kHz)
• Dimensions without bracket (W×H×D) 170 × 258 × 168 mm
• Dimensions with bracket (W×H×D) 170 × 258 × 185 mm
• ABS body materials, painted aluminum bracket and grille
• Black color RAL 9005
• Operating temperature –20 °C ÷ +80 °C
