Description

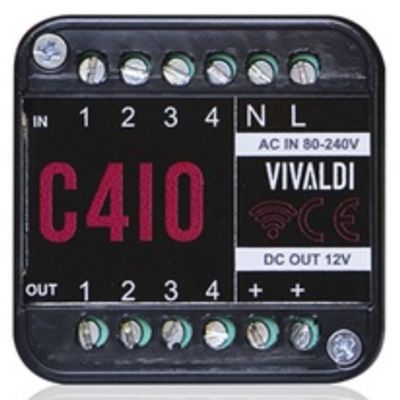

Remote control interface designed for Wi‑Fi control of Vivaldi audio systems (P30S/P80S/MATRIX6/TELEMACO) featuring 4 multi-function button inputs (short/long press) programmable via web interface, with the first two activated via rotary encoder (TVE, sold separately).
In support, 4 12V outputs with LED modes (steady, slow flash, quick flash) allow visual feedback for states such as mute, playback or connectivity.
Powered by 110‑230 VAC, its compact size (44×44×18 mm) and weight of approximately 0.5 kg make the C4IO perfect for professional installations in the education, hospitality, retail and wellness sectors.
Datasheet
• Inputs 4 multifunction buttons (short/long press)
• Rotary encoder (inputs 1-2) compatible with TVE accessory
• 4 x 12V LED outputs (3 modes: steady, slow flash, quick flash)
• Programmable functions volume, mute, preset, playback, USB…
• Configuration via web interface
• Power supply 110–230 V AC
• Dimensions 44 × 44 × 18 mm
• Compatible with P30S, P80S, MATRIX6, TELEMACO, GRM1
