11 cm circular in-wall speaker, 100 V line, selectable at 3/6 W RMS (12 W peak), with 92 dB sensitivity and 103 dB maximum SPL
Description

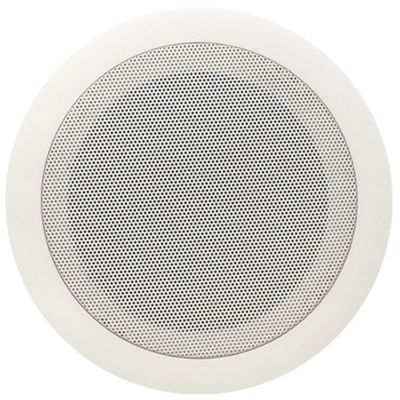

Ceiling or in-wall speaker for PA or multi-room systems, featuring a 11 cm wide-range woofer, designed for installation in plasterboard or hollow ceilings, combines selectable power (3/6 W RMS, 12 W peak) and good efficiency, with a sensitivity of 92 dB.
The paintable white design makes it adaptable to any environment, with a limited depth (60 mm) and a 150 mm recessed hole.
Datasheet
• 11cm wide range woofer
• Selectable power 3 / 6 W RMS (12 W peak)
• Sensitivity 92 dB
• Maximum SPL 103 dB
• Frequency response 100 Hz – 15 kHz
• Installation hole Ø 150 mm
• Total dimensions Ø 175 × D 60 mm
• White RAL 9016 colour, paintable
• Body material: ABS; metal grille
• Operating temperature from –20 °C to +65 °C
Properties
Cerifications:
