Description

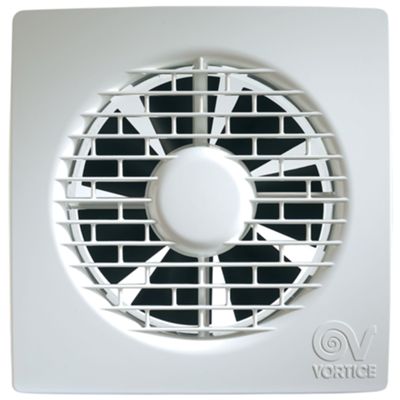

Wall mounted helical extractor fan designed for installation in small and medium-sized residential and commercial environments, made of plastic resin resistant to aging caused by exposure to solar rays (UV resistant), guarantees durability over time.
The thermally protected motor is mounted on self-lubricating bushing supports and coupled to a thermoplastic helical impeller with wing profile blades, ensuring high performance with minimal noise levels.
The extractor is equipped with an electronic timer that allows automatic switch-off after an interval that can be set during installation, between 3 and 20 minutes (default setting at 3 minutes).
The operating speed can be adjusted via a Vortice controller, adapting to the specific needs of the environment. Furthermore, it is equipped with a non-return valve applied to the delivery mouth, ensuring effective ventilation without air return.
Datasheet
• Nominal diameter 90 mm
• Maximum flow rate 65 m³/h
• Maximum absorbed power 15 W
• Power supply voltage 220-240 V
• Rotation speed 2,500 RPM
• Sound pressure level at 3 m 28.8 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant plastic resin material
• Wall, ceiling or false ceiling installation
• Helical impeller in thermoplastic material with wing profile blades
• Electronic timer for automatic switch-off settable between 3 and 20 minutes
• Non-return valve applied to the delivery port
