Description

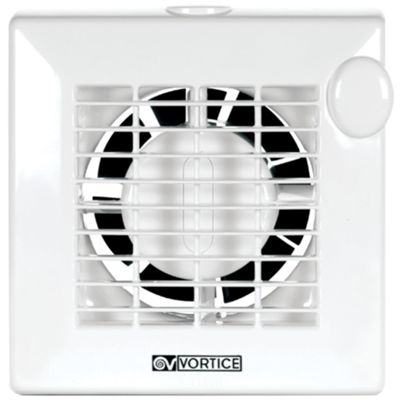

Helical extractor fan designed to ensure effective ventilation in residential environments, made of plastic resin resistant to ageing due to exposure to the sun ("UV resistant"), has a nominal diameter of 120 mm.
The thermally protected motor is mounted on self-lubricating bushing supports and combined with a helical impeller in thermoplastic material with wing profile blades.
This design ensures high air flow (up to 175 m³/h) with low noise level and energy consumption.
Equipped with an electronic timer for automatic switch-off, the operating time can be set, during installation, in the range from 3 to 20 minutes (default setting 3 minutes).
Datasheet
• Wall or glass helical extractor fan
• Nominal diameter 120 mm
• Maximum air flow 175 m³/h
• Supply voltage 230 V
• Power consumption 20 W
• Sound power level 39.5 dB(A) at 3 m
• Thermally protected motor with shaft on self-lubricating bushing supports
• Helical impeller in thermoplastic material with wing profile blades
• Plastic resin material resistant to aging due to exposure to the sun (“UV resistant”)
• Electronic timer for automatic switch-off adjustable from 3 to 20 minutes
• IPX4 protection rating
• Class II insulation
• Installation on wall, ceiling, false ceiling or glass
• White color
