Description

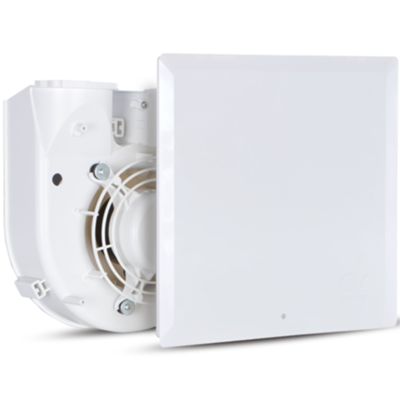

Centrifugal extractor designed for wall or ceiling installation, suitable for ventilation of medium-sized residential and commercial environments that require exhaust channeling.
The device is equipped with a long-life single-speed AC motor (Long Life) with a shaft mounted on ball bearings, which drives a centrifugal impeller, ensuring a nominal flow rate of 100 m³/h, the front panel and the auger are made of self-extinguishing white ABS plastic resin (grade V0), while the motor holder and filter support are also made of ABS plastic resin.
The washable filter is equipped with a device for signaling a saturated filter, furthermore the product includes a timer that allows automatic shutdown after a preset time interval, improving energy efficiency and user comfort.
¡Es necesario completar todo con la caja correspondiente no incluida que puedes encontrar a continuación!
Datasheet
• Nominal flow rate 100 m³/h
• Nominal diameter 80 mm
• Degree of protection IP45
• Maximum absorbed power 70W
• Voltage 220-240V
• Sound pressure level at 3 m 30.5 dB(A)
• Rotation speed 1570 RPM
• Long Life single speed AC motor
• Front panel and auger in ABS plastic resin
• Engine holder and filter support in ABS plastic resin
• Washable filter with filter saturated warning device
• Timer for automatic switch-off
• Wall or ceiling installation
