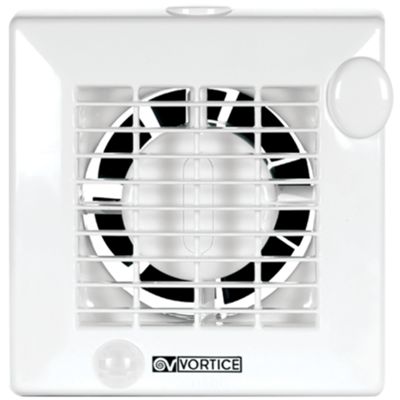

Vortice 11682 - helical extractor with presence sensor M 100/4 PIR LL
Often bought together
Description
Helical extractor designed for installation on walls or glass, its construction in plastic resin resistant to aging caused by exposure to the sun (UV resistant) ensures durability over time.
The motor, thermally protected and mounted on ball bearing supports (Long Life), is combined with a helical impeller in thermoplastic material with wing profile blades, ensuring silent and efficient operation.
The infrared motion sensor (PIR) automatically activates the extractor when presence is detected, while the integrated timer allows you to adjust the operating time after the absence of movement.
Datasheet
• Wall or glass helical extractor fan
• Nominal diameter 100 mm
• UV-resistant plastic resin material
• Thermally protected motor, with shaft on ball bearing supports (Long Life)
• Exhaust Ø 99 mm
• Helical impeller in thermoplastic material with wing profile blades
• Maximum flow rate 90 m³/h
• Power consumption 18 W
• Power supply voltage 220–240 V
• IPX4 protection rating
• Insulation class II
• PIR sensor (infrared motion detection)
• Adjustable timer for operating time after no movement
