Description

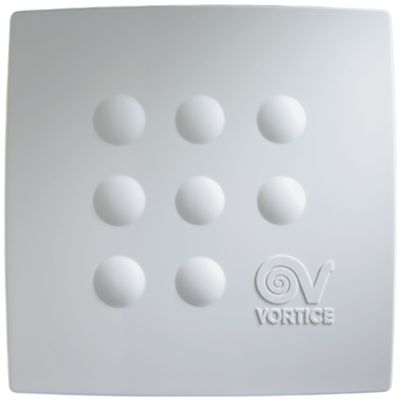

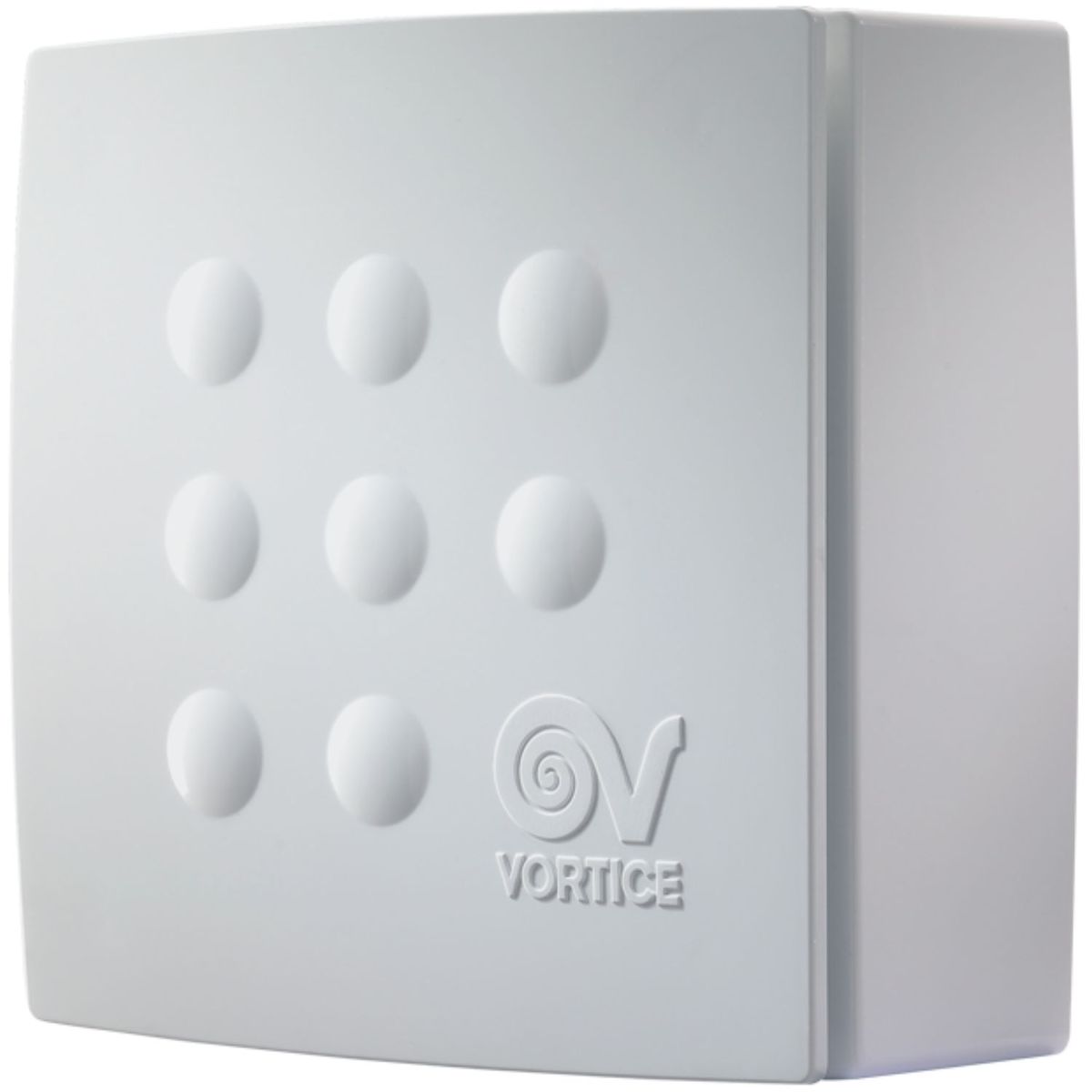

Centrifugal extractor designed for wall or ceiling installation, suitable for ventilation of small and medium-sized residential and commercial premises that require exhaust ducting.
Made of white ABS plastic resin, it offers resistance and durability, the 2-speed induction motor with start capacitor is coupled to a forward-bladed centrifugal impeller and equipped with a protective thermal fuse and self-lubricating bushings, ensuring reliability and silence.
The extractor fan is equipped with an electronic board that includes a relative humidity sensor (HCS) with four predefined threshold levels (60%, 70%, 80%, 90%), selectable during installation. When the humidity exceeds the set threshold, the fan turns on automatically.
The card also integrates an electronic timer for the automatic switch-off of the product after the relative humidity has returned below the preset threshold, with a duration that can be set between 3 and 20 minutes (default setting of 3 minutes).
Datasheet
• Nominal diameter 100 mm
• Maximum flow rate at speed 120 m³/h
• Maximum power consumption 29 W
• Maximum speed 1,890 RPM
• Minimum speed 1,150 RPM
• Sound pressure level at 3 m at maximum speed 43.4 dB(A)
• Sound pressure level at 3 m at minimum speed 36.7 dB(A)
• IPX4 protection rating
• Insulation class II
• Material: White ABS plastic resin
• Wall or ceiling installation
• 2-speed motor with thermal protection fuse and self-lubricating bushings
• Relative humidity sensor with selectable thresholds (60%, 70%, 80%, 90%)
• Electronic timer for automatic switch-off settable between 3 and 20 minutes (default 3 minutes)
