Description

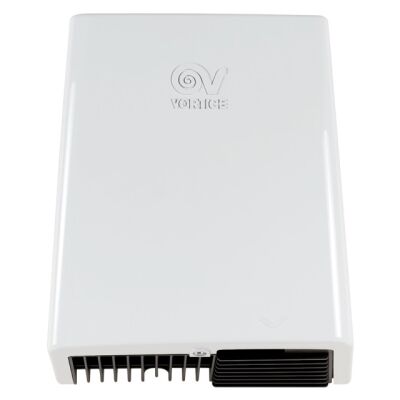

Automatically operated wall-mounted electric hand dryer, ideal for installation in public environments such as bathrooms in restaurants, hotels, gyms and wellness centers, equipped with a front cover in shock-resistant thermosetting material, white in color, guarantees durability and resistance over time.
The wall flange integrates a hot air outlet grille made of plastic material (PP), ensuring uniform distribution of the air flow, the AC motor is thermally protected and mounted on ball bearing supports, combined with a forward-curved centrifugal impeller, for efficient and silent operation.
The electric resistance is protected by two safety devices: a thermal fuse and a resettable thermal limiter, while the device is activated automatically via an infrared sensor, with a detection distance adjustable up to 35 cm using an internal trimmer.
With an air flow rate of 170 m³/h, it ensures quick and effective drying of hands, the compact design and ease of installation make this hand dryer a practical and hygienic solution for high-traffic environments.
Datasheet
• Automatic wall-mounted electric hand dryer
• Power supply voltage 220–240 V
• Max absorbed power 2000 W
• Motor power 65 W
• Air flow 170 m³/h
• Air speed 50 km/h
• Drying time 25 s
• Sound pressure at 1 m 61.4 dB(A)
• IPX4 protection rating
• Impact protection grade IK09
• Insulation class II
• Impact-resistant thermoset front cover
• Plastic wall flange (PP)
• Activation with infrared sensor with adjustable distance up to 35 cm
• Thermal fuse and resettable thermal limiter safety devices
• Package contents Towels, fixing kit, user manual
