Description

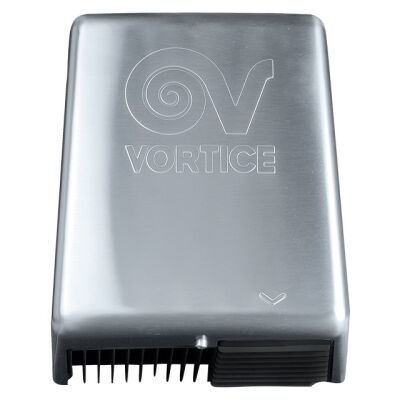

Hand dryer designed to ensure quick and efficient drying of hands in public environments such as swimming pools, gyms, wellness centers and accommodation facilities, the front body is made of polished stainless steel, giving the device an elegant appearance and high resistance to wear.
The wall flange integrates a hot air outlet grille made of plastic material (PP), ensuring uniform distribution of the air flow, while the AC motor is thermally protected and mounted on ball bearing supports, combined with a forward-curved centrifugal impeller, ensuring silent and long-lasting operation.
The electric resistance is protected by two safety devices: a thermal fuse and a resettable thermal limiter. The device is activated automatically via an infrared sensor, with a detection distance adjustable up to 35 cm using an internal trimmer.
If the intake grille or the hot air outlet vent is blocked, the device automatically switches off to ensure user safety.
It is also equipped with a dust filter to keep the air clean during use.
Datasheet
• Automatic wall-mounted electric hand dryer
• Power supply voltage 220–240 V
• Max absorbed power 2000 W
• Motor power 65 W
• Air flow 220 m³/h (47 l/s)
• Air speed 50 km/h
• Drying time 25 s
• Sound pressure at 1 m 61.4 dB(A)
• IPX4 protection rating
• IK10 impact protection rating
• Insulation class II
• Front body material in polished stainless steel
• Wall flange material plastic (PP)
• Infrared sensor activation with adjustable distance up to 35 cm
• Resettable thermal fuse and thermal limiter
• Dust filter included
