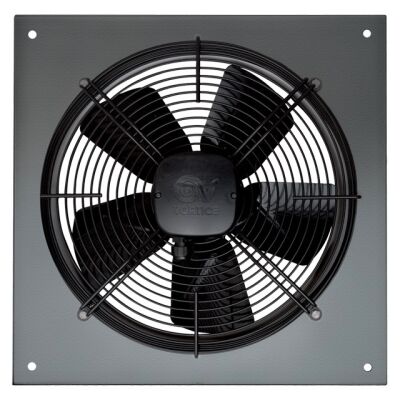

Description
Suitable for applications in commercial and industrial environments, for ventilation or extraction systems in warehouses, hospitals, discos, offices, theatres, factories, gyms, restaurants etc... and at low sound levels.
Support and anti-accident and anti-bird protection grille, easily removable for maintenance.
The panels are pressed from phosphated steel sheet and painted with gray epoxy powder with a hammered effect to guarantee resistance to atmospheric agents over time.
The single-phase AC single-speed motor, of the external rotor type to minimize axial dimensions, with shaft mounted on supports with ball bearings, thermo-protected and in class F.
Dynamically balanced impeller, 5 blades pressed in electro-galvanized sheet steel and painted with black polyester powder.
Datasheet
• Frequency 50/60 Hz
• IP54 protection rating
• Number of poles 4
• Voltage 230V
• Maximum power absorbed 81W
• Max flow rate 1563 m³/h
