Description

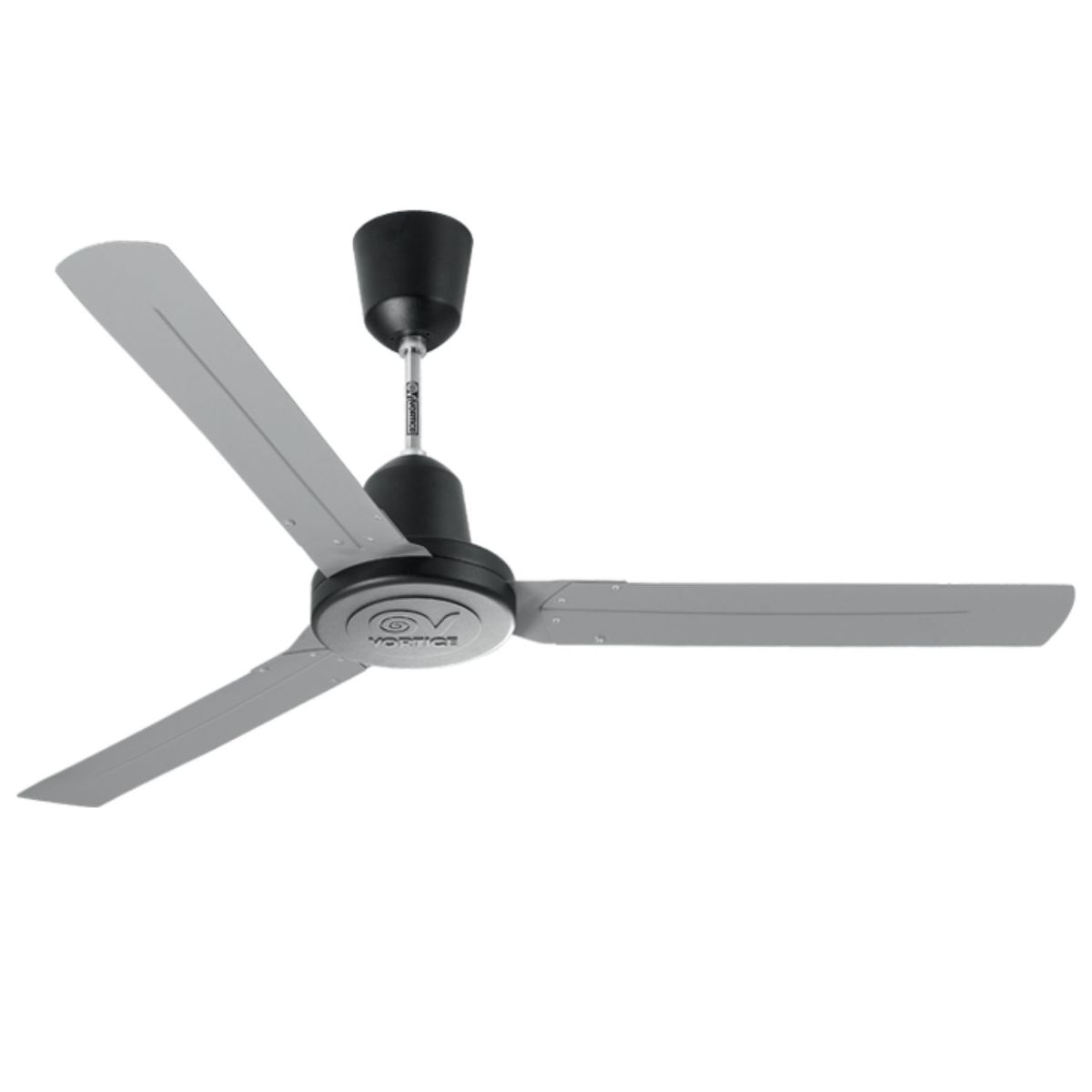

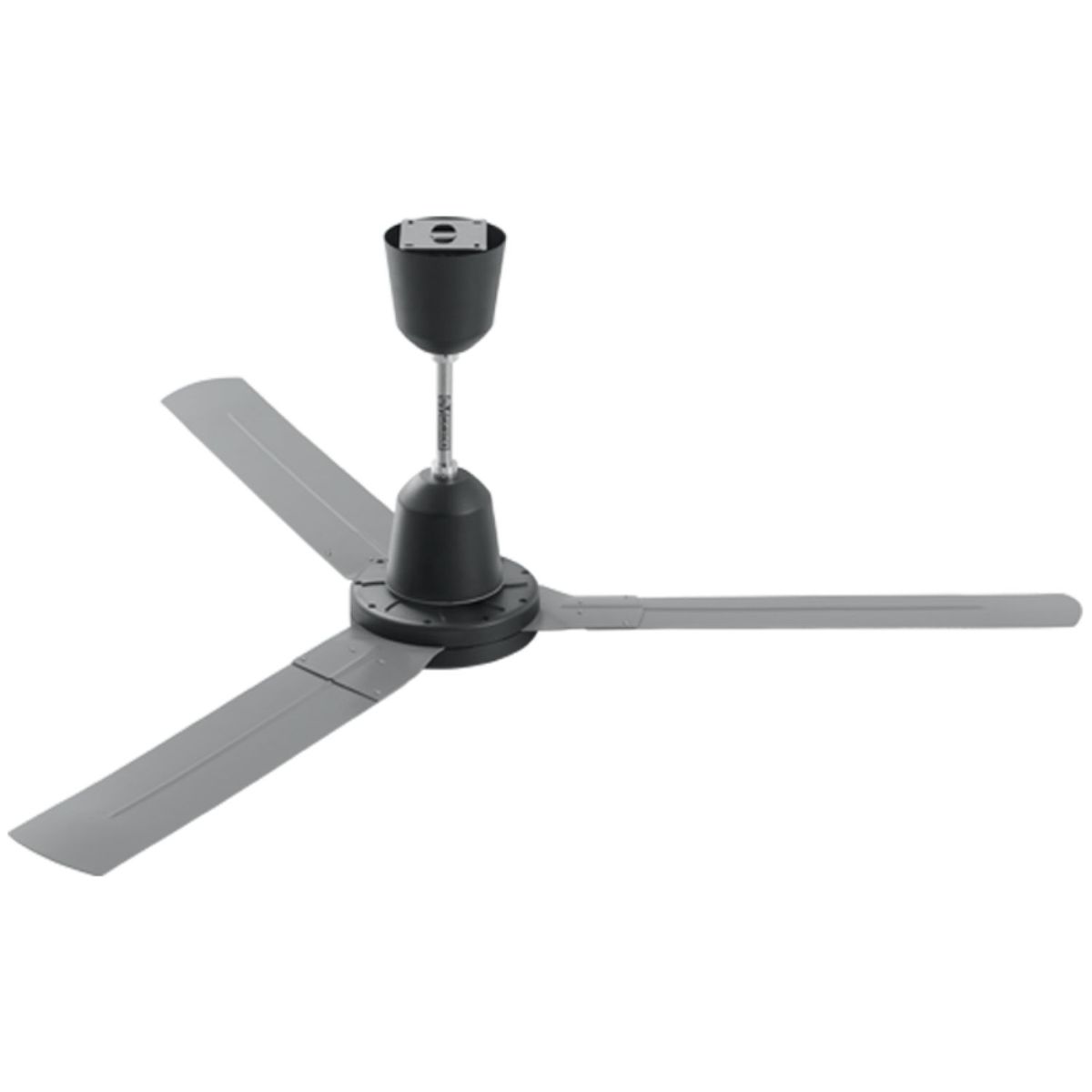

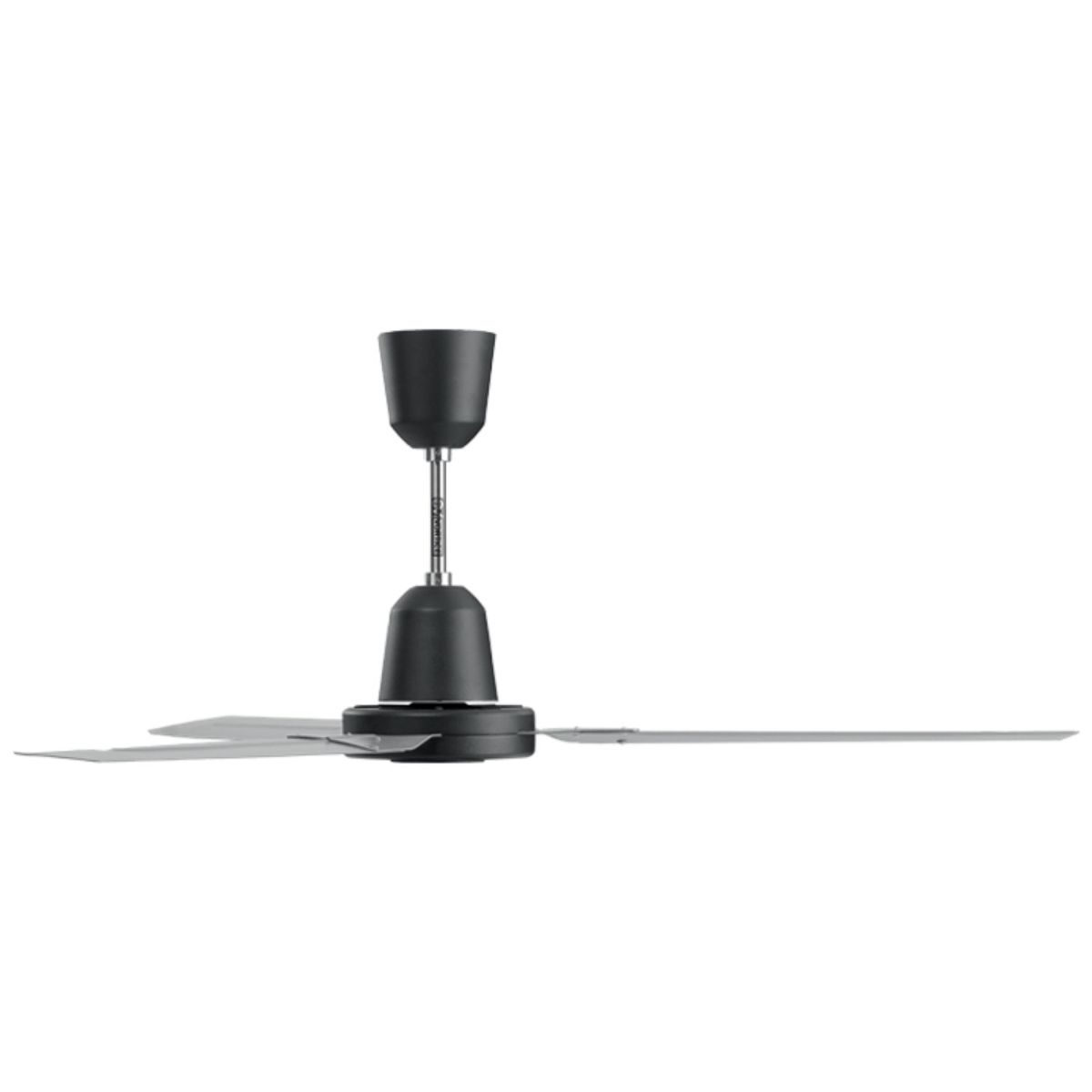

High-performance ceiling fan, designed to ensure effective ventilation in large industrial and commercial environments, its 200 cm galvanized steel blades and single-phase external rotor motor ensure a powerful and constant air flow, with a maximum capacity of 22,050 m³/h.
The robust structure and IP55 protection make it suitable even in humid and dusty environments, the design includes an EPDM gasket for greater sealing against dust and water, and a secure fixing system with 4-hole plate compatible with different types of ceilings, even sloped ones.
Datasheet
• Industrial ceiling fan
• Blade diameter 200 cm
• Air flow 22050 m³/h
• Sound power level 56.4 dB(A)
• Sound pressure at 3 m 38.85 dB(A)
• Rotation speed 186 RPM
• Power supply 220–240 V
• Single-phase external rotor motor with ball bearings and starting capacitor
• Blades in electro-galvanized steel with double epoxy paint
• Engine cups in electro-galvanized steel sheet painted in embossed black
• EPDM gasket for dust and water tightness
• IP55 protection rating
• Fixing with 4-hole plate compatible with sloping ceilings
• Accessories included: bolts, hook, anti-vibration rubber
• Adjustable speed with transformer or electronic devices (optional)
• Maximum operating temperature 50°C
