Description

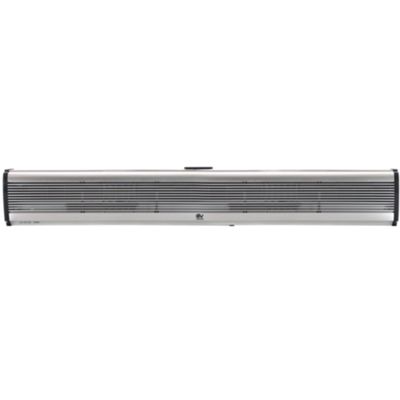

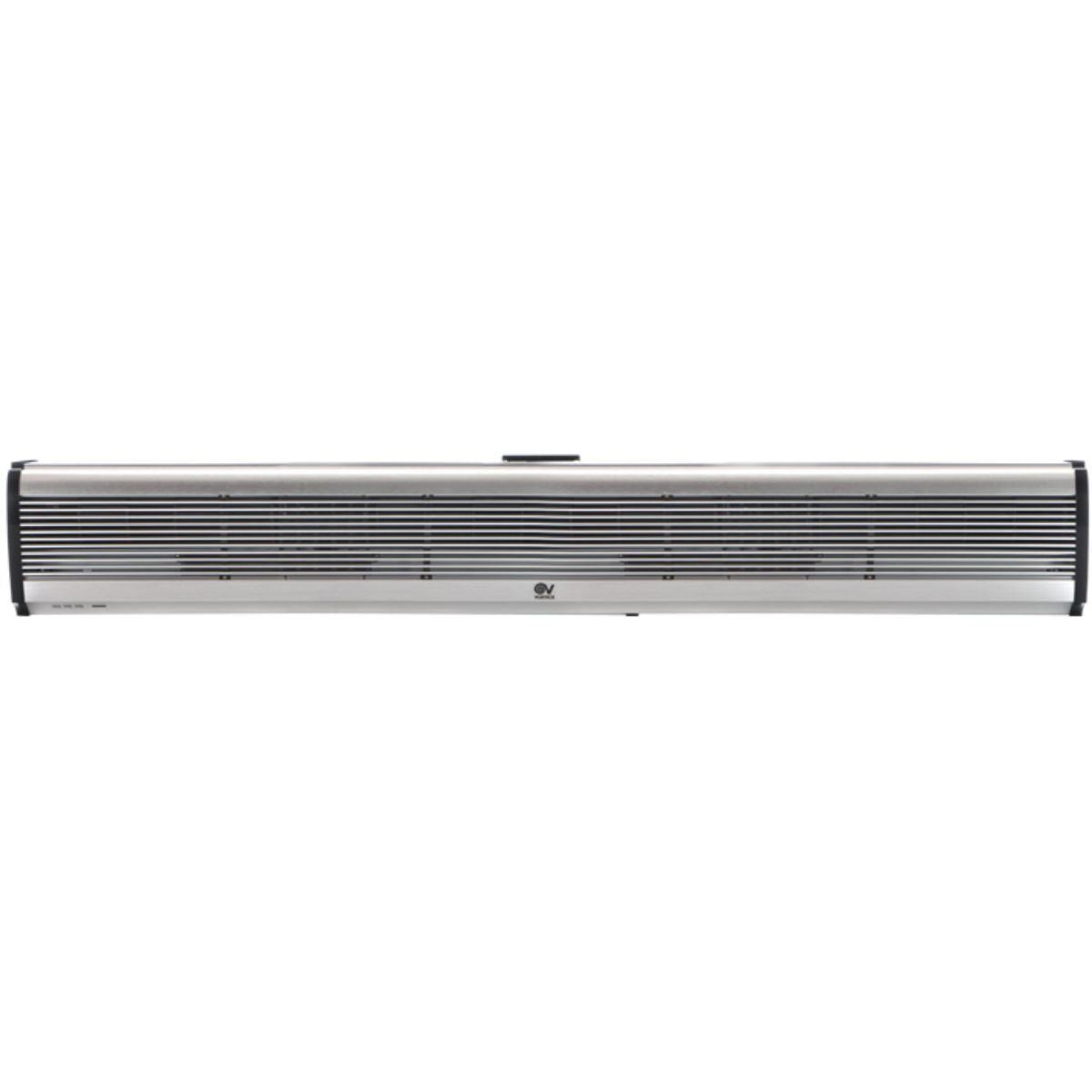

Heated air curtain, ideal for installation above doors or entrances of commercial and industrial premises, its main function is to create a blade of air that separates environments with different temperatures, preventing heat loss and the entry of dust, smoke, odors and insects.
The device is equipped with a 10 kW electric resistance, which allows heating the emitted air, improving thermal comfort at the entrance to the rooms, the air curtain is controllable via an infrared remote control, which allows switching on/off, selecting speeds and activating the resistance.
The same controls are also available on the front panel of the device, via three buttons.
The elegant design features a front panel in satin-finish silver-grey aluminium, with an intake grille made up of 9 horizontal elements in polished aluminium, the rear body is in black sheet metal, while the side panels are in black ABS thermoplastic resin.
Datasheet
• Air curtain with electric resistance
• Power supply 400 V (three-phase)
• Thermal power 10 kW
• Max absorbed current 18 A
• Number of speeds 2
• Air flow at maximum speed 2200 m³/h
• Sound pressure at 2 m at maximum speed 59 dB(A)
• Dual-shaft induction motor with thermal protection
• Front panel material: satin aluminum
• Rear body material black sheet metal
• Side panels material in ABS thermoplastic resin
• Silver grey and black colour
• Infrared remote control included
• Compatibility with door sensors
• Adjustable fins
• Dimensions (W x H x D) 150 x 26 x 19 cm
