Description

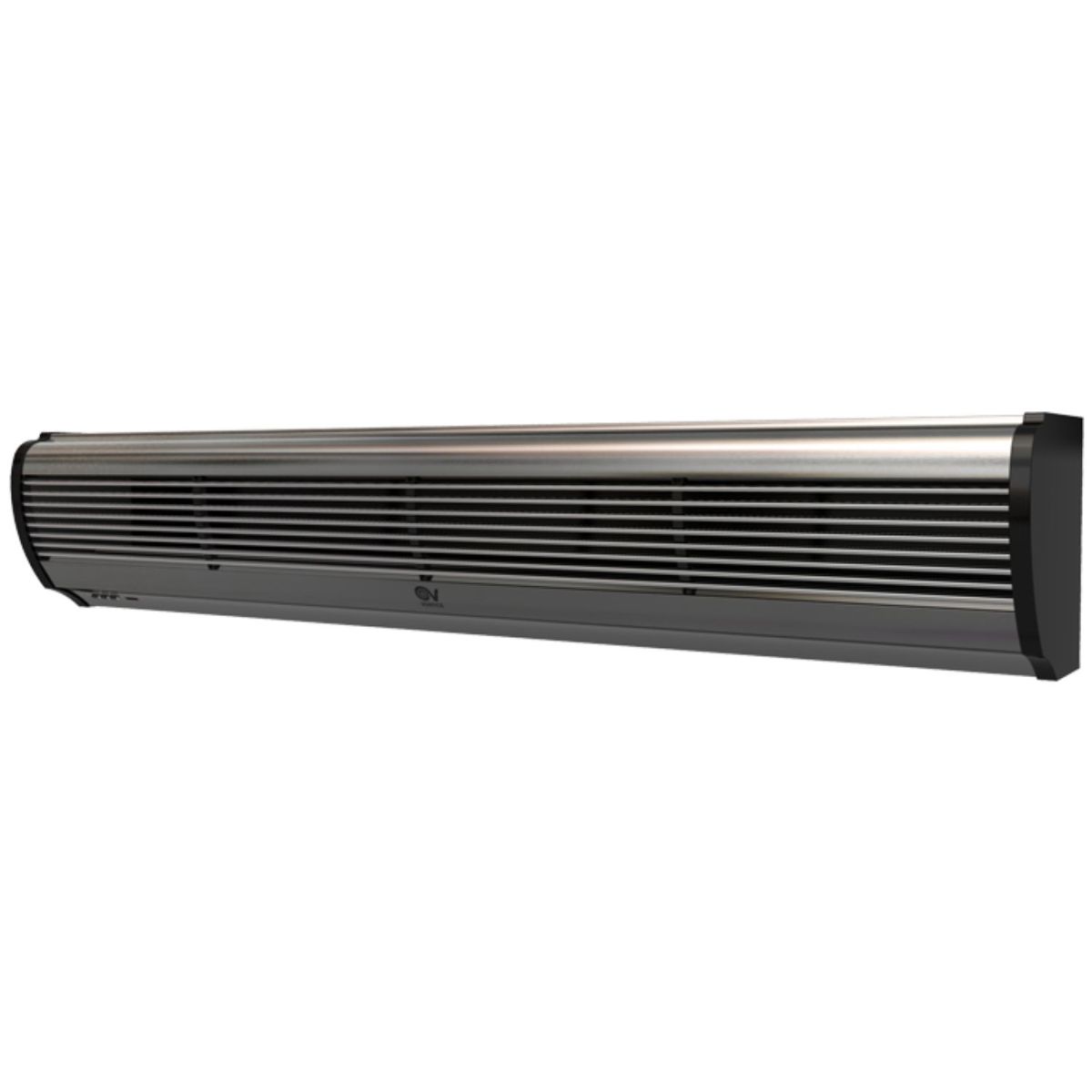

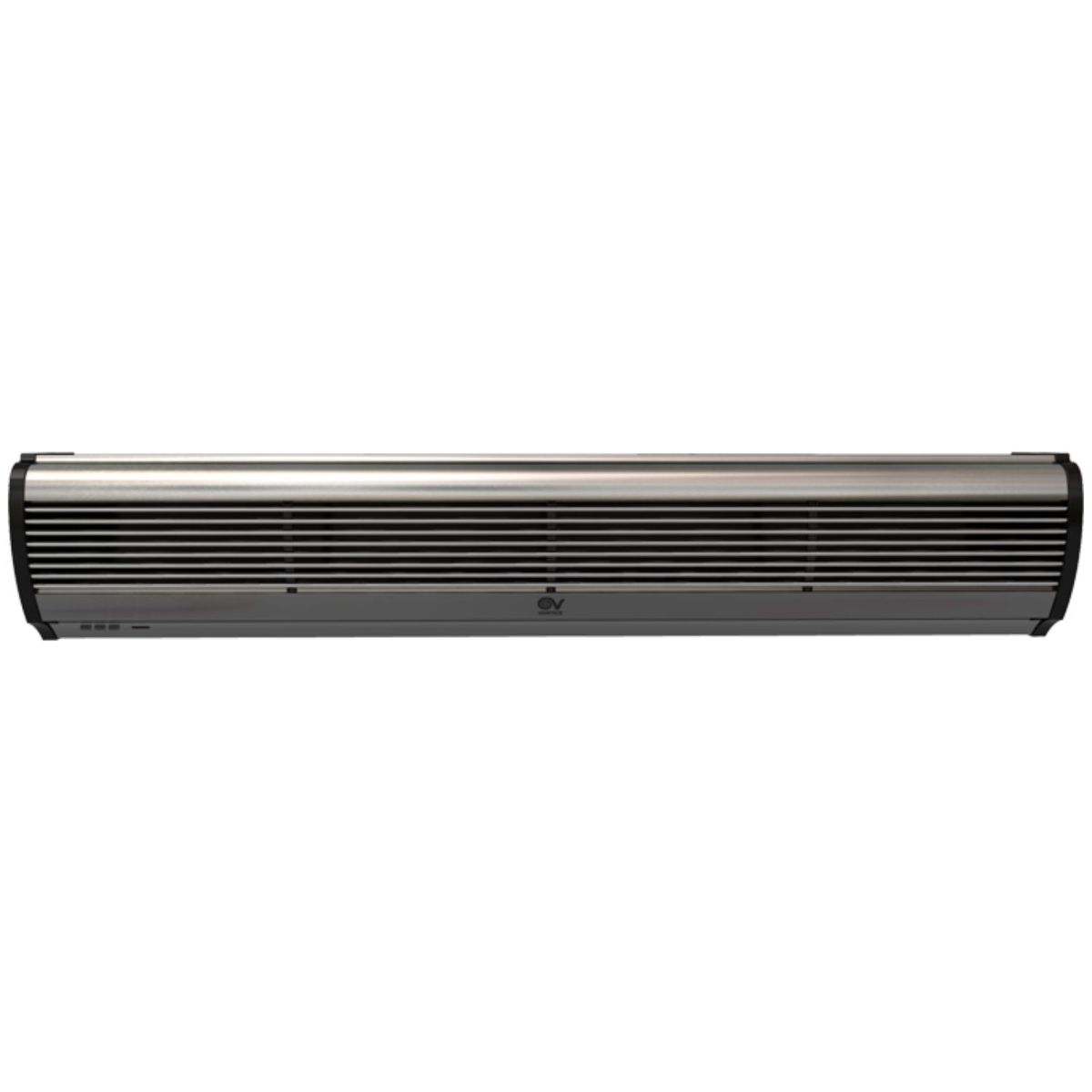

The AIR DOOR AD1200 features an elegant and functional design, a front panel made of satin-finish silver-grey aluminium, with an intake grille made up of 9 horizontal elements in polished aluminium, a rear body in black sheet metal, which acts as a support for the internal components, and side panels in black ABS thermoplastic resin.
The device is equipped with two tangential fans made of black thermoplastic resin (SAN), ultrasonically welded, which direct the air through a longitudinal opening located in the lower part of the machine, the adjustable fins allow you to direct the air flow according to specific needs, it has 2 operating speeds.
The dual-shaft AC motor is thermally protected, ensuring safety and reliability, the air curtain is controllable via an infrared remote control, which allows on/off and speed selection.
The same controls are also available on the front panel of the device, via three buttons, the power cord is equipped with a Schuko plug, and the device can be paired with standard door sensors for automatic operation.
Datasheet
• Neutral air barrier (without heating)
• Power supply 220-240 V
• Power absorbed at maximum speed 200 W
• Power absorbed at minimum speed 150 W
• Number of speeds 2
• Air flow at maximum speed: 1900 m³/h (527 l/s)
• RPM at maximum speed: 1450
• Maximum ambient temperature for continuous operation 30°C
• Dimensions (W x H x D) 120 x 22 x 19 cm
• Front panel material: satin aluminum
• Rear body material black sheet metal
• Side panels material in ABS thermoplastic resin
• Silver grey and black colour
• Infrared remote control included
• Adjustable fins
