Description

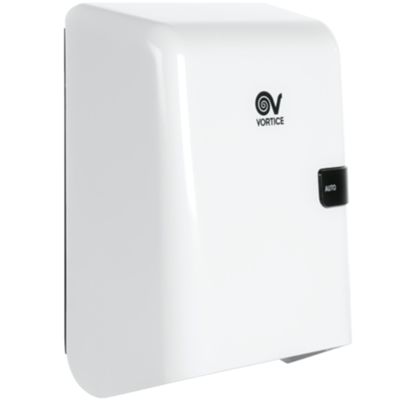

Electric hand dryer designed for wall installation in high-traffic public environments, its structure is composed of a front cover in shock-proof ABS plastic resin with anti-UV treatment, with a locking system with Allen screws to prevent tampering.
Rear flange in loaded plastic resin (PP) and lower grille in plastic resin (PC) with mesh filter moulded in the same material.
The induction motor is thermally protected and combined with a centrifugal impeller, the electrical resistance is protected by two devices, a safety thermal fuse and an automatically resetting thermal limiter.
Activation is manual via button, with an electronic timer for automatic switch-off that can be set during installation in the range from 1 to 8 minutes and it is possible to connect to an external timed or non-timed coin mechanism.
Datasheet
• Manual wall-mounted electric hand dryer
• Power supply voltage 220–240 V
• Max absorbed power 1800 W
• Motor power 70/85 W
• Max absorbed current 8 A
• Max air flow 190 m³/h (52 l/s)
• Max air speed 58 km/h (16 m/s)
• Drying time 22 s
• Sound pressure level at 1 m 61 dB(A)
• IPX4 protection rating
• Impact protection grade IK09
• Insulation class II
• Dimensions (H x W x D) 346 x 265 x 155 mm
• Manual activation via button
• Electronic timer for automatic switch-off adjustable from 1 to 8 minutes
• Can be connected to an external timed or non-timed coin mechanism
