Description

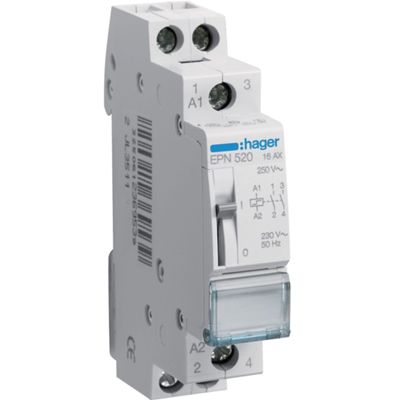

Compact step relay module (17.5 mm wide, 63 mm deep) for DIN rail, designed to switch loads with a single pulse from push buttons.
With a nominal current of 16 A (AC1) and a quiescent current of just 6 mA, it supports 230 V AC power supplies
It has two NO contacts (2NO) and screw terminals for flexible (1–6 mm²) or rigid (1.5–10 mm²) cables.
Thanks to its robust design and small size, it is ideal for use in civil and industrial systems where multiple control sources need to be alternated with a single load.
It complies with RoHS and REACH directives, with technical documentation available for download.
Datasheet
• 2NO contact
• Rated current 16 A (AC1)
• Quiescent current 6 mA
• Control voltage 230 V AC / 110 V DC
• Operating/insulation voltage 250 V
• Frequency 50–60 Hz
• Conductor cross-sections flexible 1–6 mm², rigid 1.5–10 mm²
• Dimensions 83 × 17.5 × 63 mm
• Screw terminal technology
• Lamp load up to 800 VA fluorescent, 1 800 W incandescent
• Temperature from -5 °C to +40 °C, -40 °C to +80 °C
• RoHS, REACH environmental compliance
