Description

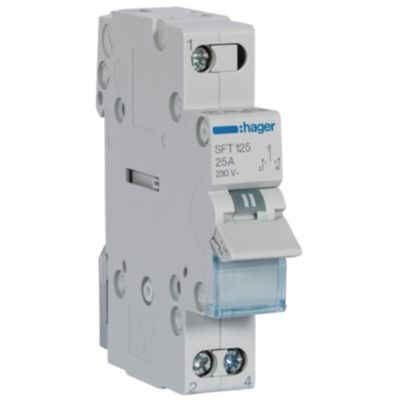

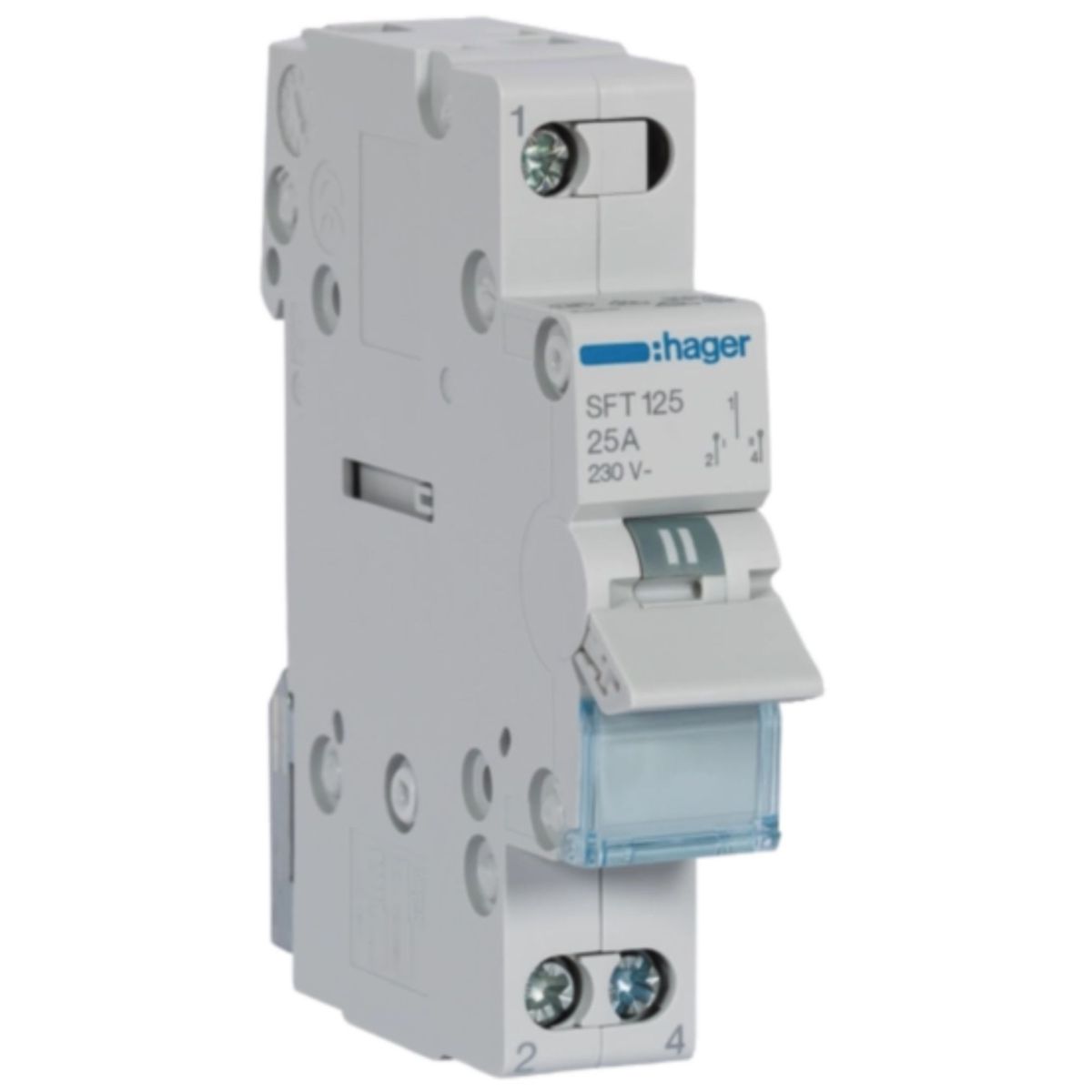

Compact modular rotary switch, designed for use on DIN rail in both domestic and industrial electrical panels.
It supports a nominal current of 25 A and operates at 230 V AC, ensuring isolation up to 440 V and impulse voltages up to 4000 V.
It offers three stable positions (I-0-II), is designed for common connection alignment at the top and promises high durability of up to 200,000 mechanical operations and 25,000 electrical operations in AC21 and AC22 categories, with IP20 protection degree.
Datasheet
• Number of poles 1 P (without neutral)
• Rated current 25 A
• Switching function 1-0-2 (I-0-II), changeover contact
• Rated operating voltage 230 V AC
• Insulation voltage (Ui) 440 V
• Impulse withstand voltage (Uimp) 4000 V
• Degree of protection IP20
• 1 DIN module housing (17.5 mm × 83 mm × 70 mm)
• Operating temperature –20 °C +50 °C
• Mechanical life 200,000 operations
• Electrical life (AC21/AC22) 25,000 cycles
• Screw terminal connections, flexible conductors 1.5–10 mm², rigid 1.5–16 mm²
• Position of the top common
