Description
Suitable for intermittent or continuous ventilation of small or medium-sized domestic or commercial premises. Motor holder and grille made of anti-UV treated ABS. High air flow, low noise level and energy consumption thanks to the airfoil fan and motor holder. Delayed shutdown in a time range of approximately 3 to 20 minutes. Insulation class II.
Datasheet

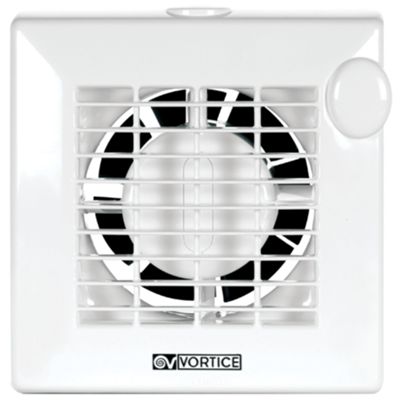

• Wall or glass helical extractor fan
• Nominal diameter 90 mm
• Maximum air flow 70 m³/h
• Power supply voltage 220–240 V
• Power consumption 18 W
• Sound power level 39 dB(A) at 3 m in free field
• Thermally protected motor with shaft on self-lubricating bushing supports
• Helical impeller in thermoplastic material with wing profile blades
• Material: UV-resistant plastic resin
• Electronic timer for automatic switch-off adjustable from 3 to 20 minutes
• IPX4 protection rating
• Class II insulation
• Dimensions 15.9 x 16 x 10 cm (L x H x D)
• Installation on wall, ceiling, false ceiling or glass
