Description

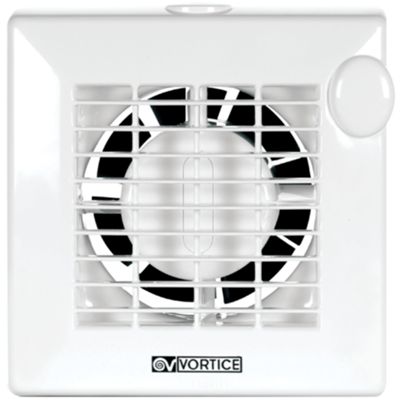

Versatile helical extractor, suitable for installation on walls or windows, made of UV-resistant plastic resin, guarantees durability and maintains its aesthetics over time.
The motor, protected against thermal overloads, is equipped with ball bearings which ensure a long operating life.
The thermoplastic helical impeller with wing profile blades optimizes airflow, offering high performance with low noise levels.
The extractor can be combined with a Vortice speed regulator to adapt to different ventilation needs.
Datasheet
• Nominal diameter 100 mm
• Maximum flow rate 90 m³/h
• Maximum absorbed power 18 W
• Power supply voltage 220-240 V
• Rotation speed 2,300 RPM
• Sound pressure level at 3 m 37.5 dB(A)
• IPX4 protection rating
• Insulation class II
• UV-resistant plastic resin material
• Wall or window installation
