Description

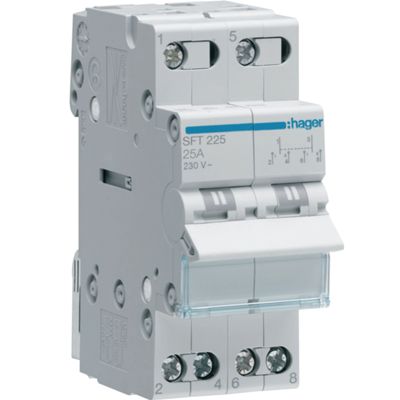

Double pole (2 pole) snap-action toggle switch, designed for DIN rails (modular mounting), with 1-0-2 (I-0-II) function and common at the top.
It supports a nominal current of 25 A at 230 V AC, with making and short-circuit withstand power consumption (Icm 0.52 kA, Icw 0.37 kA), protection degree IP20, insulation up to 440 V and impulse withstand up to 4000 V.
It is robust and durable, guaranteeing up to 200,000 mechanical operations and 25,000 electrical cycles in AC21/AC22.
Datasheet
• Number of poles 2P (without neutral)
• Rated current 25 A
• Function 1-0-2 (I-0-II), switching between two circuits
• Rated operating voltage 230 V AC
• Insulation voltage (Ui) 440 V
• Impulse withstand voltage (Uimp) 4000 V
• Rated closing capacity Icm 0.52 kA
• Degree of protection IP20
• Number of modules 2
• Dimensions (HxWxD) 83 x 35 x 70 mm
• Screw terminal connections, flexible cables 1.5–10 mm² / rigid 1.5–16 mm²
• Mechanical life 200,000 operations
• Electrical life (AC21/AC22) 25,000 cycles
• Power consumption 1.80 W total (0.90 W per pole)
• Operating temperature –20 °C +50 °C; storage –40 °C … +80 °C
